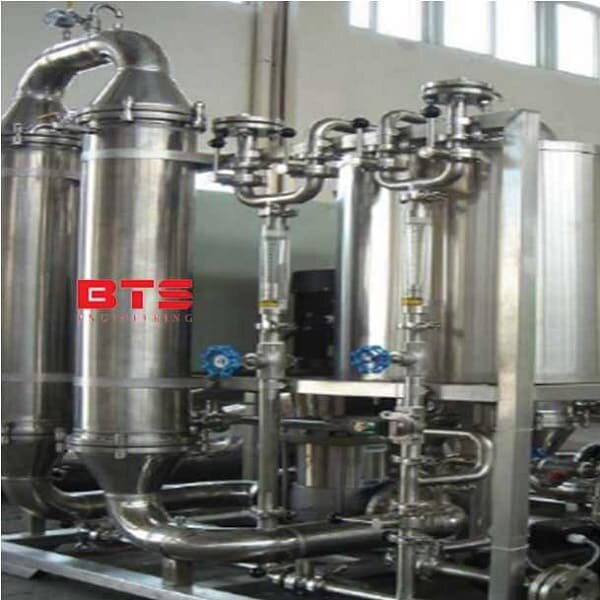

Ultrafiltration unit on ceramic membranes:
- Model: UF300
- Function: remove collected solid particles and protein
- Accurate filtration
- System: 1-block installation
- Materials: SUS304 / EPDM, sanitary execution
- Control: manual control
- Scope of delivery: module (2 PCs. for installation of 12 membranes, pump, sanitary valve, tools, control filter, heat exchanger, CIP Flushing tank, control cabinet
- Power: 8.2 KV * 380V *50Hz
- Dimensions: 1800*900*2800 mm.
- Gross weight: 400 kg
Liquid characteristics:
- Capacity: 300L / H
- Dry substances: 30%, bacteria: 0.5-1.5%
- Lactic acid: 5%, salts: 0.5-1.5%
- Biotin-0.5%
- Temperature: 40℃
- PH:4
Additional information:
- Installations are successfully used in many factories.
- Combining the technology of using ceramic and polymer membranes
- Has high filtration accuracy, operating period - 7-10 years.
- Complies with the ISO9000 quality control system, has a European certificate of compliance
