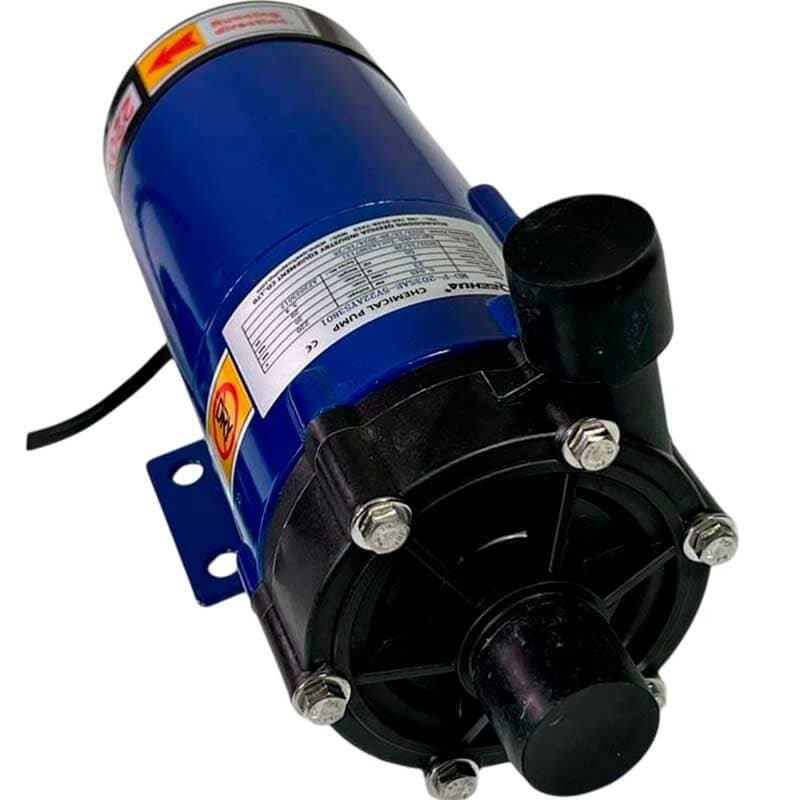

Pump with magnetic coupling sealed MD-F-257SAE-5V38AYS, PPH, 60L/min, 7.3m, 380V

Code: 1022519
(0 review)
ProducerQeehua
MaterialPP
Max. head, m7.3
PumpTypewith magnetic coupling
Output pipe diameterG1
Input pipe diameterG1
Max.temperature, C70
Weight, kg6,3
Flow rate, l/min60
Max.flow rate, m3/h3.6
Pump capacity, cu.m/hour3.6
Serial number of the pumpMD
Drive Typeelectric
Feed height, m7.3
Power capacity, kW0,18
Dimensions, mm303x155x142
Power supply3х380 V, 50 Hz
Housing materialPPH
Material of O-ringEPDM
Shaft materialCERAMIC
Type of configurationwith engine
Installation Typehorizontal
Analogue forIWAKI, FTI, ARBO, STN, STEINER, EVT, SP, DB, M Pumps CM MAG-P, Кристалл ХЦМ, Gemme Cotti HTM, Kaix MDP, Finish Thompson Ins, FLUIMAC CM, AGRAL TMR, Tapflo, AGRAL TMB, AGRAL TMP
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$532.96 (netto)
Добавить в сравнение
We deliver anywhere in the world
Chemical pump for alkali,acid, filtration, electrolyte, electroplating, hypochloride, nitric acid. Pumps with a magnetic coupling, unlike other chemical pumps, have a significant feature - the design of these pumps does not use an end seal, oil seal or other sealing element of this type. The working body is driven by a magnetic field, the working chamber and the drive shaft are separated by a non-moving casing made of chemically resistant material. This eliminates the possibility of liquid leakage from the working chamber. The magnetic coupling is not afraid of solid particles in the liquid, there is no possibility of leakage, which is not unimportant when pumping chemically active and explosive liquids. Unlike mechanically sealed pumps, pumps equipped with a magnetic coupling do not require maintenance (which saves money and time). Technical specifications: Inlet and outlet pipe: 26x26 mm Motor power: 180W Power supply: 50HZ 50HZ 3Ø-380V Feed height (max): 6.7 m Capacity (max): 86 l / min Pump analogues: - AGRAL TMB series, TMP, TMR, FLUIMAC CM Series, IWAKI, Finish Thompson Ins, Kaix MDP series, Gemme Cotti HTM series, Crystal XCM Series, M Pumps CM MAG-P series
ProducerQeehua
MaterialPP
Max. head, m7.3
PumpTypewith magnetic coupling
Output pipe diameterG1
Input pipe diameterG1
Max.temperature, C70
Weight, kg6,3
Flow rate, l/min60
Max.flow rate, m3/h3.6
Pump capacity, cu.m/hour3.6
Serial number of the pumpMD
Drive Typeelectric
Feed height, m7.3
Power capacity, kW0,18
Dimensions, mm303x155x142
Power supply3х380 V, 50 Hz
Housing materialPPH
Material of O-ringEPDM
Shaft materialCERAMIC
Type of configurationwith engine
Installation Typehorizontal
Analogue forIWAKI, FTI, ARBO, STN, STEINER, EVT, SP, DB, M Pumps CM MAG-P, Кристалл ХЦМ, Gemme Cotti HTM, Kaix MDP, Finish Thompson Ins, FLUIMAC CM, AGRAL TMR, Tapflo, AGRAL TMB, AGRAL TMP
