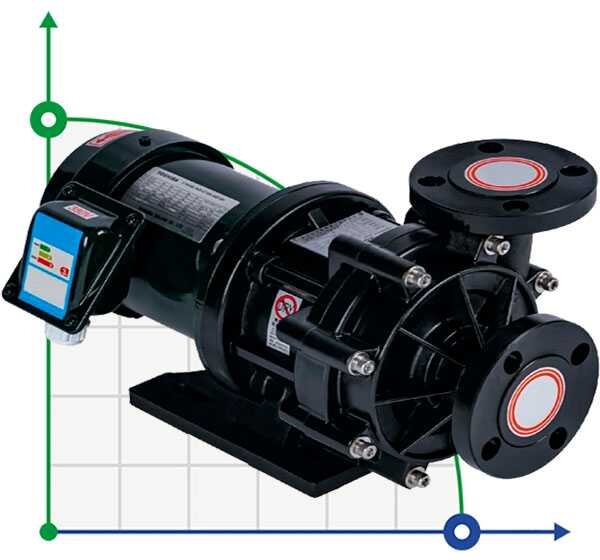

Pump with magnetic coupling MP-HX-545 GFRPP, 500L/min, 35m, 380V-TOSHIBA

Code: 1022544
(0 review)
ProducerQeehua
MaterialGFRPP
Max. head, m35
PumpTypewith magnetic coupling
Output pipe diameter40
Input pipe diameter50
Max.temperature, C70
Weight, kg38,6
Max.flow rate, m3/h30
Pump capacity, cu.m/hour30
Serial number of the pumpMP-HX
Drive Typeelectric
Feed height, m35
ModelMP-HX-545
Power capacity, kW3,7
Dimensions, mm593x325x250
Power supply3х380 V, 50 Hz
Material of O-ringVITON
Shaft materialCERAMIC
Type of configurationwith engine
Installation Typehorizontal
Bearing MaterialCARBON (Graphite)
Analogue forSTEINER, Gemme Cotti HTM, Кристалл ХЦМ, M Pumps CM MAG-P, DB, SP, EVT, STN, ARBO, FTI, Kaix MDP, Finish Thompson Ins, IWAKI, FLUIMAC CM, Tapflo, AGRAL TMB, AGRAL TMP, AGRAL TMR
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2,797.75 (netto)
Добавить в сравнение
We deliver anywhere in the world
Chemical pump for alkali,acid, filtration, electrolyte, electroplating, hypochloride, nitric acid. Pumps with a magnetic coupling, unlike other chemical pumps, have a significant feature - the design of these pumps does not use an end seal, oil seal or other sealing element of this type. The working body is driven by a magnetic field, the working chamber and the drive shaft are separated by a non-moving casing made of chemically resistant material. This eliminates the possibility of liquid leakage from the working chamber. The magnetic coupling is not afraid of solid particles in the liquid, there is no possibility of leakage, which is not unimportant when pumping chemically active and explosive liquids. Unlike mechanically sealed pumps, pumps equipped with a magnetic coupling do not require maintenance (which saves money and time). Technical specifications: Inlet and outlet pipe: 50x40 mm Engine: TOSHIBA Engine power: 3.7 kW Power supply: 50HZ 3Ø-380V Feed height (max): 35 m Capacity (max): 500 l / min Pump analogues: - AGRAL TMB series, TMP, TMR, FLUIMAC CM Series, IWAKI, Finish Thompson Ins, Kaix MDP series, Gemme Cotti HTM series, Crystal XCM Series, M Pumps CM MAG-P series
ProducerQeehua
MaterialGFRPP
Max. head, m35
PumpTypewith magnetic coupling
Output pipe diameter40
Input pipe diameter50
Max.temperature, C70
Weight, kg38,6
Max.flow rate, m3/h30
Pump capacity, cu.m/hour30
Serial number of the pumpMP-HX
Drive Typeelectric
Feed height, m35
ModelMP-HX-545
Power capacity, kW3,7
Dimensions, mm593x325x250
Power supply3х380 V, 50 Hz
Material of O-ringVITON
Shaft materialCERAMIC
Type of configurationwith engine
Installation Typehorizontal
Bearing MaterialCARBON (Graphite)
Analogue forSTEINER, Gemme Cotti HTM, Кристалл ХЦМ, M Pumps CM MAG-P, DB, SP, EVT, STN, ARBO, FTI, Kaix MDP, Finish Thompson Ins, IWAKI, FLUIMAC CM, Tapflo, AGRAL TMB, AGRAL TMP, AGRAL TMR
