Producer | ERDURO |
Material | cast iron |
Max. head, m | 65 |
PumpType | console |
Output pipe diameter | DN50 |
Input pipe diameter | DN65 |
Material of flow channel | cast iron |
Max.temperature, C | 110 |
Max.flow rate, m3/h | 90 |
Pump capacity, cu.m/hour | 90 |
Serial number of the pump | BTKF |
Drive Type | electric |
Feed height, m | 65 |
Country of Origin | Turkey |
Warranty, months | 12 |
Power capacity, kW | 11 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 3 000 |
Nom.pressure, Mpa | 1,6 |
Type of configuration | with engine |
Installation Type | horizontal |
Impeller material | cast iron |
Application | сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water |
Producer | ERDURO |
Material | cast iron |
Max. head, m | 65 |
PumpType | console |
Output pipe diameter | DN50 |
Input pipe diameter | DN65 |
Material of flow channel | cast iron |
Max.temperature, C | 110 |
Max.flow rate, m3/h | 90 |
Pump capacity, cu.m/hour | 90 |
Serial number of the pump | BTKF |
Drive Type | electric |
Feed height, m | 65 |
Country of Origin | Turkey |
Warranty, months | 12 |
Power capacity, kW | 11 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 3 000 |
Nom.pressure, Mpa | 1,6 |
Type of configuration | with engine |
Installation Type | horizontal |
Impeller material | cast iron |
Application | сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water |

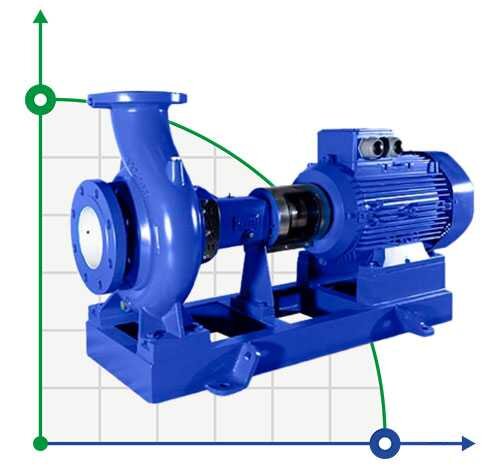

Download instructions, catalog for BTKF 50-200, 11 kW, Cantilever Single Stage Pump (1500)
