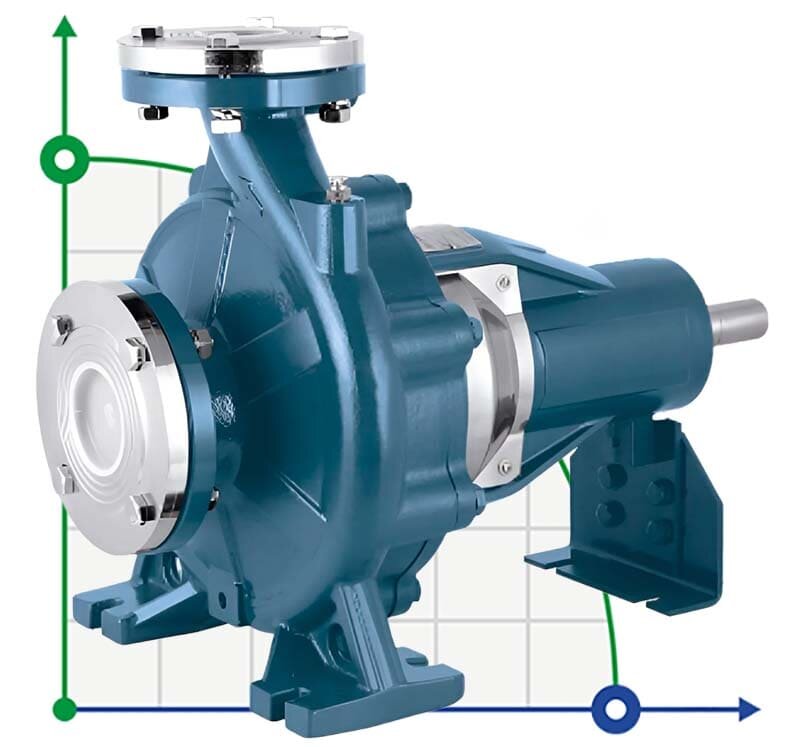

Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine
Click image for a larger view
Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine
Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine
Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine
Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine
Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine

Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine

Code: 1045010
(0 review)
ProducerBTS Engineering
Materialcast iron
Max. head, m17
PumpTypeconsole
Output pipe diameterDN50
Input pipe diameterDN65
Max.temperature, C120
Weight, kg35
Max.flow rate, m3/h72
Explosion protectionNo
Pump capacity, m3/h72
Serial number of the pumpBS
Drive Typeelectric
Feed height, m17
Country of OriginChina
Warranty, months12
Power capacity, kW2,2
Length of transport packing, cm50
Width of transport packing, cm26
Height of transport packing, cm34
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
ProtectionIP55
Nom.pressure, Mpa2
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwithout engine
Installation Typehorizontal
Nom.flow rate, m3/h48
Nom.head, m12.8
Impeller materialcast iron
Transport packing volume, cbm0,044
Impeller diameter, mm123
Show all features (33)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$391 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Console Pumps Made Of Cast Iron
ProducerBTS Engineering
Materialcast iron
Max. head, m17
PumpTypeconsole
Output pipe diameterDN50
Input pipe diameterDN65
Max.temperature, C120
Weight, kg35
Max.flow rate, m3/h72
Explosion protectionNo
Pump capacity, m3/h72
Serial number of the pumpBS
Drive Typeelectric
Feed height, m17
Country of OriginChina
Warranty, months12
Power capacity, kW2,2
Length of transport packing, cm50
Width of transport packing, cm26
Height of transport packing, cm34
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
ProtectionIP55
Nom.pressure, Mpa2
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwithout engine
Installation Typehorizontal
Nom.flow rate, m3/h48
Nom.head, m12.8
Impeller materialcast iron
Transport packing volume, cbm0,044
Impeller diameter, mm123

Download instructions, catalog for Cantilever pump for circulation BS 50-125/22 (48/12.8), 2.2kW, 2900 without engine
