| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 164 |
| PumpType | console |
| Output pipe diameter | DN50 |
| Input pipe diameter | DN65 |
| Max.temperature, C | 120 |
| Weight, kg | 90 |
| Max.flow rate, m3/h | 90 |
| Explosion protection | No |
| Pump capacity, m3/h | 90 |
| Serial number of the pump | BS |
| Drive Type | electric |
| Feed height, m | 164 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 75 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Nom.pressure, Mpa | 2 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | without engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 54 |
| Nom.head, m | 155 |
| Impeller material | cast iron |
| Transport packing volume, cbm | 0,128 |
| Impeller diameter, mm | 340 |
| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 164 |
| PumpType | console |
| Output pipe diameter | DN50 |
| Input pipe diameter | DN65 |
| Max.temperature, C | 120 |
| Weight, kg | 90 |
| Max.flow rate, m3/h | 90 |
| Explosion protection | No |
| Pump capacity, m3/h | 90 |
| Serial number of the pump | BS |
| Drive Type | electric |
| Feed height, m | 164 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 75 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Nom.pressure, Mpa | 2 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | without engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 54 |
| Nom.head, m | 155 |
| Impeller material | cast iron |
| Transport packing volume, cbm | 0,128 |
| Impeller diameter, mm | 340 |

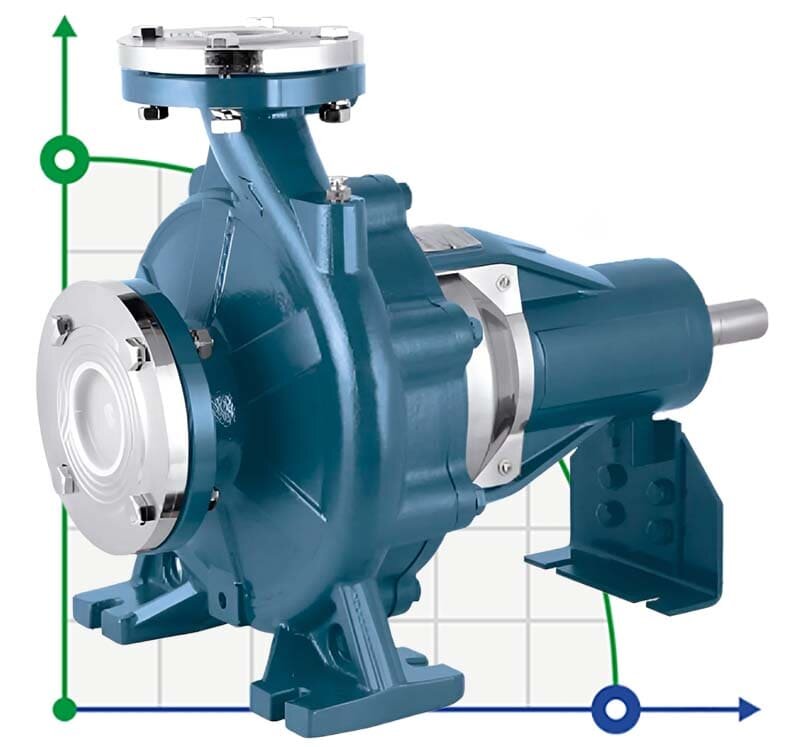

Download instructions, catalog for Cantilever irrigation pump BS 50-315/750 (54/155), 75kW, 2900 without motor
