Console pump for irrigation BS 65-200/150 (84/41), 15kW, 2900 without motor

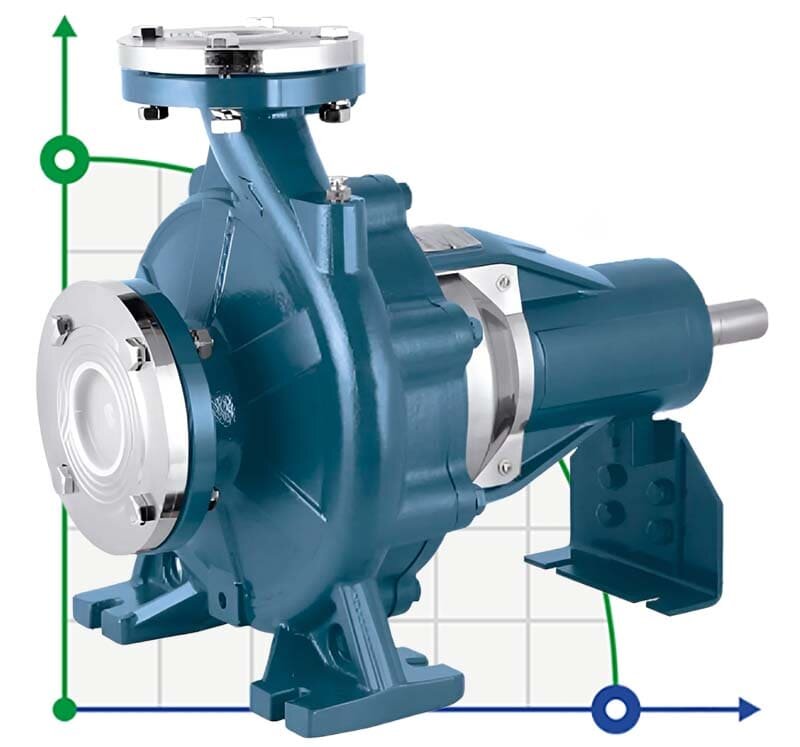

Click image for a larger view

Code: 1045033

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	45
PumpType	console
Output pipe diameter	DN65
Input pipe diameter	DN80
Max.temperature, C	120
Weight, kg	50
Max.flow rate, m3/h	120
Explosion protection	No
Pump capacity, m3/h	120
Serial number of the pump	BS
Drive Type	electric
Feed height, m	45
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Length of transport packing, cm	48
Width of transport packing, cm	34
Height of transport packing, cm	42
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	without engine
Installation Type	horizontal
Nom.flow rate, m3/h	84
Nom.head, m	41
Impeller material	cast iron
Transport packing volume, cbm	0,069
Impeller diameter, mm	190

Show all features (33)

Documentation

Description Console pump for irrigation BS 65-200/150 (84/41), 15kW, 2900 without motor

The pumping part of the BS series cantilever pump is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.

Category: Console Pumps Made Of Cast Iron

Features Console pump for irrigation BS 65-200/150 (84/41), 15kW, 2900 without motor

Producer	BTS Engineering
Material	cast iron
Max. head, m	45
PumpType	console
Output pipe diameter	DN65
Input pipe diameter	DN80
Max.temperature, C	120
Weight, kg	50
Max.flow rate, m3/h	120
Explosion protection	No
Pump capacity, m3/h	120
Serial number of the pump	BS
Drive Type	electric
Feed height, m	45
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Length of transport packing, cm	48
Width of transport packing, cm	34
Height of transport packing, cm	42
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	without engine
Installation Type	horizontal
Nom.flow rate, m3/h	84
Nom.head, m	41
Impeller material	cast iron
Transport packing volume, cbm	0,069
Impeller diameter, mm	190
