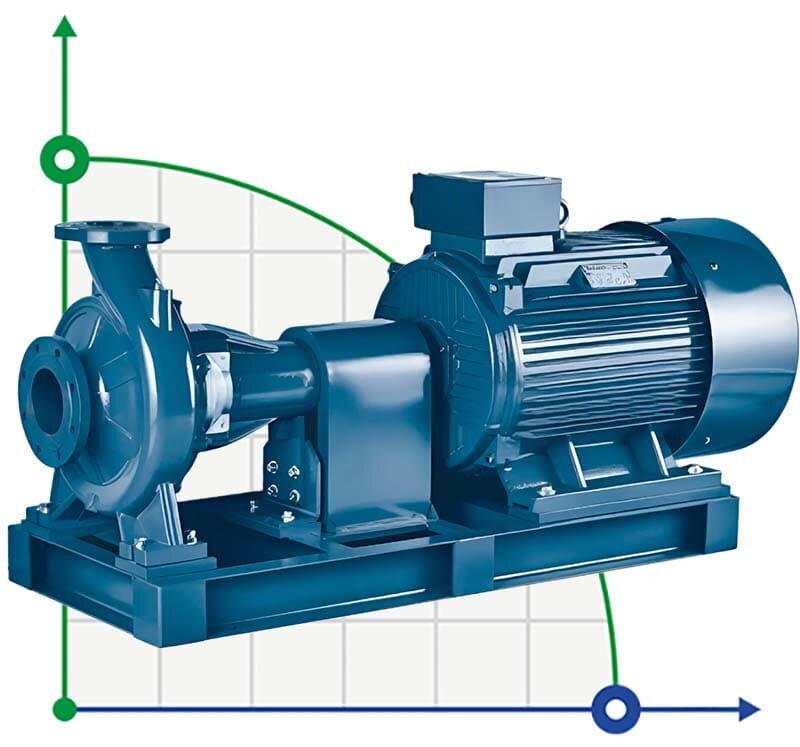

Console pump for irrigation BSM 100-315/1100 (240/108.7), 110kW, 2900

Click image for a larger view

Code: 1045293

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	118
PumpType	console
Output pipe diameter	DN100
Input pipe diameter	DN125
Max.temperature, C	120
Max.flow rate, m3/h	360
Explosion protection	No
Pump capacity, cu.m/hour	360
Serial number of the pump	BSM
Drive Type	electric
Feed height, m	118
Country of Origin	China
Warranty, months	12
Power capacity, kW	110
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	240
Nom.head, m	108.7
Impeller material	cast iron
Impeller diameter, mm	300
Application	сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water

Show all features (28)

Documentation

Description Console pump for irrigation BSM 100-315/1100 (240/108.7), 110kW, 2900

The console pump of the BSM series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump body.

Category: Console Pumps Made Of Cast Iron

Features Console pump for irrigation BSM 100-315/1100 (240/108.7), 110kW, 2900

Producer	BTS Engineering
Material	cast iron
Max. head, m	118
PumpType	console
Output pipe diameter	DN100
Input pipe diameter	DN125
Max.temperature, C	120
Max.flow rate, m3/h	360
Explosion protection	No
Pump capacity, cu.m/hour	360
Serial number of the pump	BSM
Drive Type	electric
Feed height, m	118
Country of Origin	China
Warranty, months	12
Power capacity, kW	110
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	240
Nom.head, m	108.7
Impeller material	cast iron
Impeller diameter, mm	300
Application	сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
