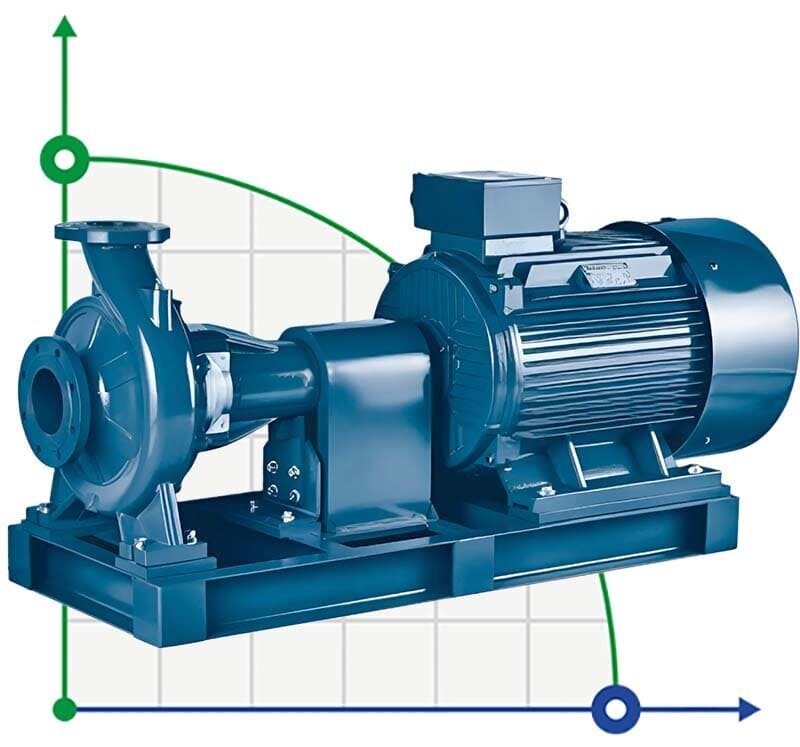

Cantilever irrigation pump BSM 65-315/550 (120/110), 55kW, 2900

Click image for a larger view

Code: 1019114

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	122
PumpType	console
Output pipe diameter	DN65
Input pipe diameter	DN80
Max.temperature, C	120
Weight, kg	119
Max.flow rate, m3/h	180
Explosion protection	No
Pump capacity, cu.m/hour	180
Serial number of the pump	BSM
Drive Type	electric
Feed height, m	122
Country of Origin	China
Warranty, months	12
Power capacity, kW	55
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Nom.pressure, Mpa	2
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	120
Nom.head, m	110
Impeller material	cast iron
Impeller diameter, mm	290
Application	сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water

Show all features (29)

Documentation

Description Cantilever irrigation pump BSM 65-315/550 (120/110), 55kW, 2900

The console pump of the BSM series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump body.
