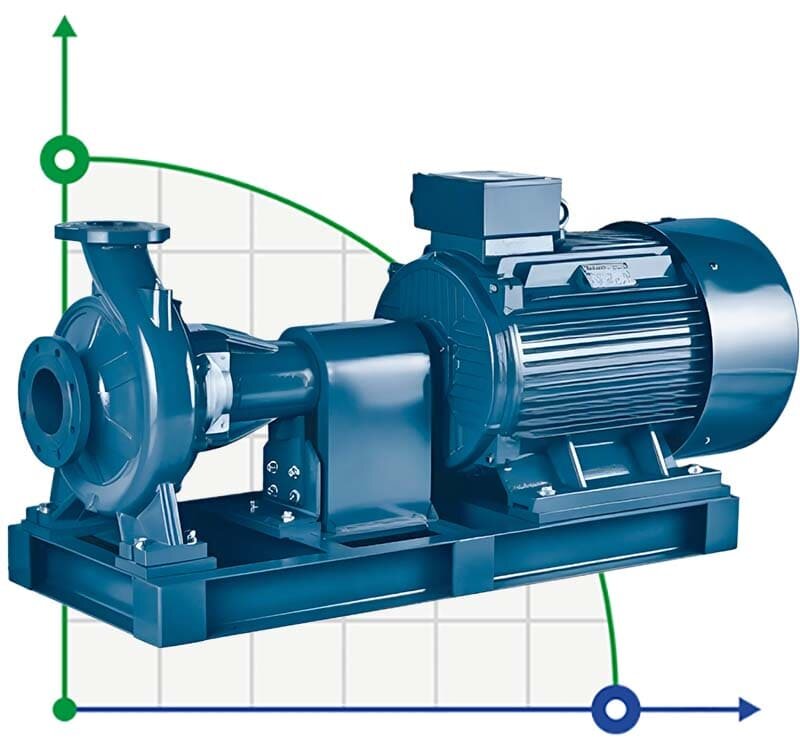

Console pump for circulation BSM4 125-400/370 (200/40.7), 37kW, 1450

Click image for a larger view

Code: 1045385

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	46.2
PumpType	console
Output pipe diameter	DN125
Input pipe diameter	DN150
Max.temperature, C	120
Max.flow rate, m3/h	300
Explosion protection	No
Pump capacity, m3/h	300
Serial number of the pump	BSM4
Drive Type	electric
Feed height, m	46.2
Country of Origin	China
Warranty, months	12
Power capacity, kW	37
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 450
Protection	IP55
Nom.pressure, Mpa	1,6
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	200
Nom.head, m	40.7
Impeller material	cast iron
Impeller diameter, mm	370
Application	сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water

Show all features (28)

Documentation

Description Console pump for circulation BSM4 125-400/370 (200/40.7), 37kW, 1450

The console pump of the BSM4 series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.

Category: Console Pumps Made Of Cast Iron

Features Console pump for circulation BSM4 125-400/370 (200/40.7), 37kW, 1450

Producer	BTS Engineering
Material	cast iron
Max. head, m	46.2
PumpType	console
Output pipe diameter	DN125
Input pipe diameter	DN150
Max.temperature, C	120
Max.flow rate, m3/h	300
Explosion protection	No
Pump capacity, m3/h	300
Serial number of the pump	BSM4
Drive Type	electric
Feed height, m	46.2
Country of Origin	China
Warranty, months	12
Power capacity, kW	37
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 450
Protection	IP55
Nom.pressure, Mpa	1,6
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	200
Nom.head, m	40.7
Impeller material	cast iron
Impeller diameter, mm	370
Application	сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
