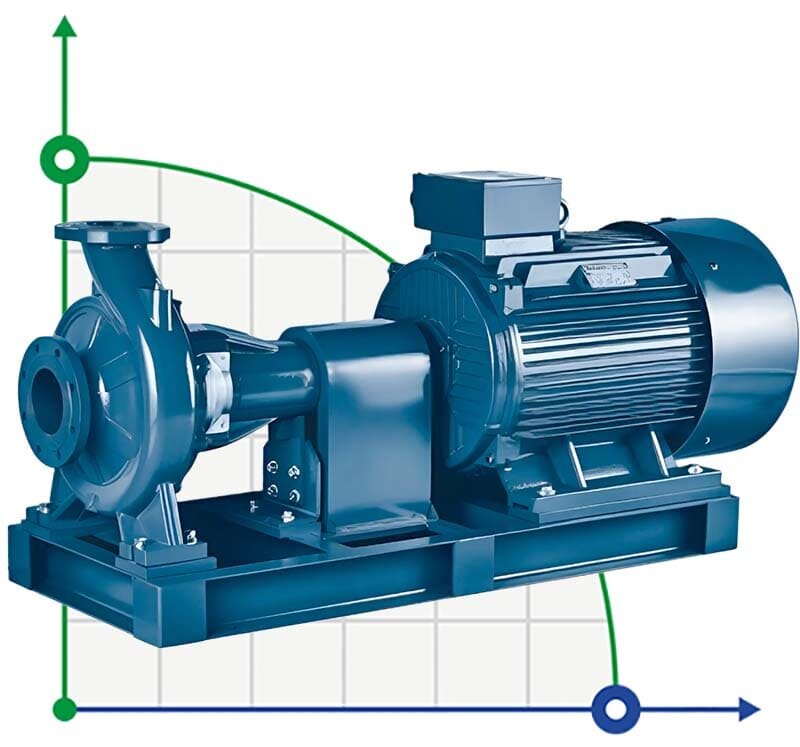

Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450
Click image for a larger view
Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450
Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450
Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450
Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450
Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450

Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450

Code: 1045426
(0 review)
ProducerBTS Engineering
Materialcast iron
Max. head, m66
PumpTypeconsole
Output pipe diameterDN250
Input pipe diameterDN300
Max.temperature, C120
Max.flow rate, m3/h1500
Explosion protectionNo
Pump capacity, m3/h1500
Serial number of the pumpBSM4
Drive Typeelectric
Feed height, m66
Country of OriginChina
Warranty, months12
Power capacity, kW250
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
ProtectionIP55
Nom.pressure, Mpa1,6
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h1100
Nom.head, m59
Impeller materialcast iron
Impeller diameter, mm448
Show all features (28)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$25,438 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
The console pump of the BSM4 series is used in water supply systems, pressure boosting, pumping of various industrial liquids, circulation, irrigation, irrigation, in agriculture, air conditioning, centralized heating, fire extinguishing, etc. Pump analogues from other manufacturers: Calpeda NM, Pedrollo H/HF, Ebara 3D, Speroni CFM/mem/CS. The pump is used for work with non-aggressive liquids, which are not chemically aggressive in relation to the pump housing.
Category: Console Pumps Made Of Cast Iron
ProducerBTS Engineering
Materialcast iron
Max. head, m66
PumpTypeconsole
Output pipe diameterDN250
Input pipe diameterDN300
Max.temperature, C120
Max.flow rate, m3/h1500
Explosion protectionNo
Pump capacity, m3/h1500
Serial number of the pumpBSM4
Drive Typeelectric
Feed height, m66
Country of OriginChina
Warranty, months12
Power capacity, kW250
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
ProtectionIP55
Nom.pressure, Mpa1,6
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h1100
Nom.head, m59
Impeller materialcast iron
Impeller diameter, mm448

Download instructions, catalog for Circulation pump BSM4 250-400/2500 (1100/59), 250kW, 1450
