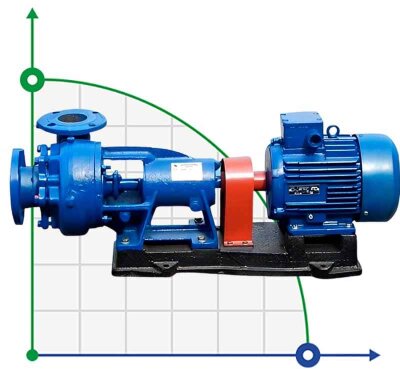

Pump unit K20/30, 4kW, 3000, on a frame

Code: 1040385
(0 review)
ProducerUkrnasosservis
Materialcast iron
PumpTypeconsole
Output pipe diameter40
Input pipe diameter50
Weight, kg87
Pump capacity, cu.m/hour20
Serial number of the pumpK
Drive Typeelectric
Feed height, m30
Country of OriginUkraine
Power capacity, kW4
Rate of turn, rpm3 000
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h20
Nom.head, m30
Impeller materialcast iron
Show all features (18)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$610 (netto)
Добавить в сравнение
We deliver anywhere in the world
K-type cantilever centrifugal pumps are designed for pumping pure water (except sea water) with pH 6...9, and other liquids similar to pure water in terms of density, viscosity and chemical activity. They work in stationary conditions with a temperature in the range from 0 to + 85°С. Pumped liquids should not contain mechanical impurities by volume of more than 0.1% and size of more than 0.2 mm. Sealing of the pump shaft is a single oil seal. The material of the parts of the flow part is gray cast iron. Upon special order, the units are manufactured with a double gland seal (SD) for pumping liquid with a temperature of up to plus 105°С and an end seal (T).
ProducerUkrnasosservis
Materialcast iron
PumpTypeconsole
Output pipe diameter40
Input pipe diameter50
Weight, kg87
Pump capacity, cu.m/hour20
Serial number of the pumpK
Drive Typeelectric
Feed height, m30
Country of OriginUkraine
Power capacity, kW4
Rate of turn, rpm3 000
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h20
Nom.head, m30
Impeller materialcast iron

Download instructions, catalog for Pump unit K20/30, 4kW, 3000, on a frame
