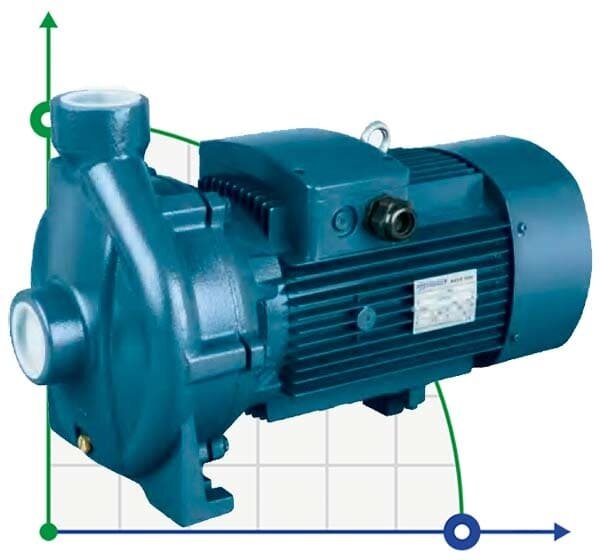

BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
Click image for a larger view
BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
More +1

BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump

Code: 1029035
(0 review)
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter80
Input pipe diameter80
Max.temperature, C120
Weight, kg35
Explosion protectionNo
Pump capacity, cu.m/hour30
Serial number of the pumpBC
Drive Typeelectric
Feed height, m19.5
Country of OriginChina
Warranty, months12
Power capacity, kW3
Dimensions, mm435х240х317
Power supply3х380 V, 50 Hz
ProtectionIP55
SealMechanical Seal, SiC/Carbon/SS304
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h30
Nom.head, m19.5
Impeller materialbrass
Pressure, bar16
Height of transport volume, cbm0,041
Volume, m30,041
Show all features (27)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$485.04 (netto)
Добавить в сравнение
We deliver anywhere in the world
The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. Double brass impeller pump in thread port design. YE3 high efficient motor, with protection IP55 class F. Shaft in stainless steel AISI 304. Quality NSK bearing, wear resistance mechanical seal. Used for any high pressure requirement.
Category: Monobloc Console Pumps Made Of Cast Iron
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter80
Input pipe diameter80
Max.temperature, C120
Weight, kg35
Explosion protectionNo
Pump capacity, cu.m/hour30
Serial number of the pumpBC
Drive Typeelectric
Feed height, m19.5
Country of OriginChina
Warranty, months12
Power capacity, kW3
Dimensions, mm435х240х317
Power supply3х380 V, 50 Hz
ProtectionIP55
SealMechanical Seal, SiC/Carbon/SS304
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h30
Nom.head, m19.5
Impeller materialbrass
Pressure, bar16
Height of transport volume, cbm0,041
Volume, m30,041

Download instructions, catalog for BC 6H (30/19,5), 3kW, 2880 thread port centrifugal pump
