| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | DN150 |
| Input pipe diameter | DN150 |
| Material of flow channel | cast iron |
| Max.temperature, C | 120 |
| Weight, kg | 498 |
| Explosion protection | No |
| Pump capacity, m3/h | 200 |
| Serial number of the pump | BGW |
| Drive Type | electric |
| Feed height, m | 50 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 45 |
| Dimensions, mm | 860x600x1120 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 480 |
| Protection | IP55 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 200 |
| Nom.head, m | 50 |
| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | DN150 |
| Input pipe diameter | DN150 |
| Material of flow channel | cast iron |
| Max.temperature, C | 120 |
| Weight, kg | 498 |
| Explosion protection | No |
| Pump capacity, m3/h | 200 |
| Serial number of the pump | BGW |
| Drive Type | electric |
| Feed height, m | 50 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 45 |
| Dimensions, mm | 860x600x1120 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 480 |
| Protection | IP55 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 200 |
| Nom.head, m | 50 |

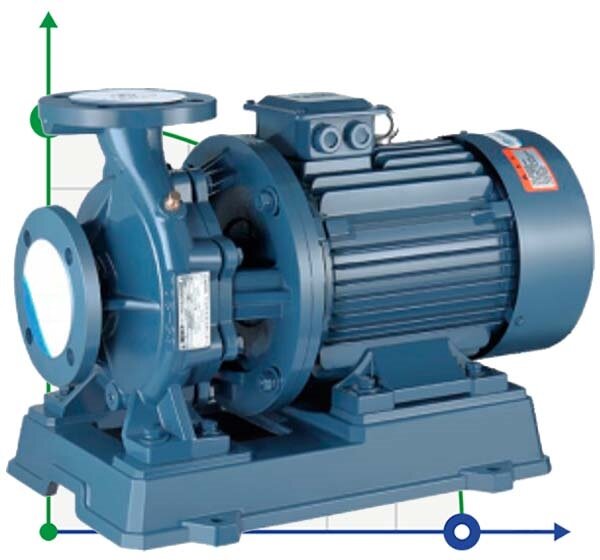

Download instructions, catalog for BGW 150-400(I) (200/50), 45kW, 1480 centrifugal horizontal pump
