| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | 25 |
| Input pipe diameter | 25 |
| Material of flow channel | cast iron |
| Max.temperature, C | 120 |
| Weight, kg | 34 |
| Explosion protection | No |
| Pump capacity, m3/h | 3.7 |
| Serial number of the pump | BGW |
| Drive Type | electric |
| Feed height, m | 28 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 1,1 |
| Dimensions, mm | 300x270x430 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 880 |
| Protection | IP55 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 3.7 |
| Nom.head, m | 28 |
| Application | водоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни |
| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | 25 |
| Input pipe diameter | 25 |
| Material of flow channel | cast iron |
| Max.temperature, C | 120 |
| Weight, kg | 34 |
| Explosion protection | No |
| Pump capacity, m3/h | 3.7 |
| Serial number of the pump | BGW |
| Drive Type | electric |
| Feed height, m | 28 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 1,1 |
| Dimensions, mm | 300x270x430 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 880 |
| Protection | IP55 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 3.7 |
| Nom.head, m | 28 |
| Application | водоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни |

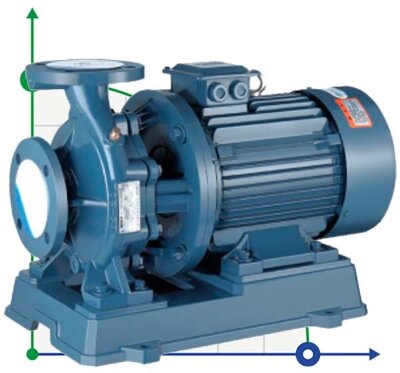

Download instructions, catalog for BGW 25-160A (3,7/28), 1,1kW, 2880 centrifugal horizontal pump
