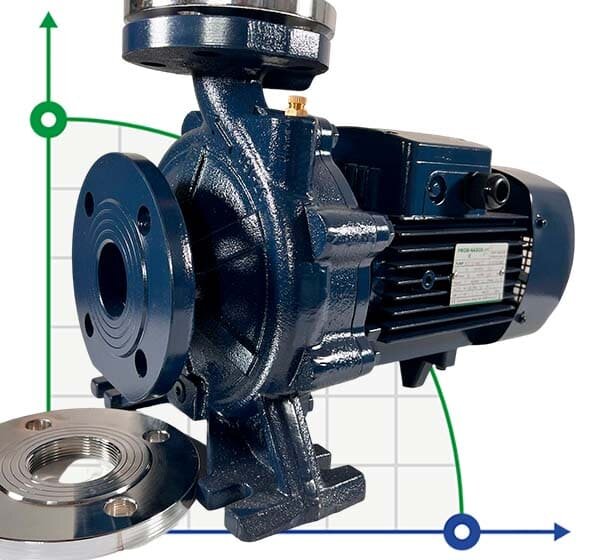

Monoblock centrifugal pump BST 50-125/3, 3000

Click image for a larger view

More +5

Code: 1019059

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	20
PumpType	console
Output pipe diameter	50
Input pipe diameter	65
Max.temperature, C	120
Weight, kg	51
Explosion protection	No
Pump capacity, cu.m/hour	55
Serial number of the pump	BST
Drive Type	electric
Feed height, m	15
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Length of transport packing, cm	59
Width of transport packing, cm	29
Height of transport packing, cm	40
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	Сast iron
Gross weight, kg	56
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	55
Nom.head, m	15
Impeller material	cast iron
Height of transport volume, cbm	0,068
Volume, m3	0,06
Application	тормозных жидкостей, тосола, антифриза, СОЖ, технологических жидкостей, систем отопления, водоснабжения, неагрессивных жидкостей, моющих средств, глицерина, повышения давления
Analogue for	Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, Ebara 3D, Calpeda NM

Show all features (34)

Documentation

Description Monoblock centrifugal pump BST 50-125/3, 3000

BST monobloc pump. Purpose: heating systems, water systems, pressure systems, non-aggressive fluids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, coolants, drilling mixtures, liquid mixtures, solvents. Analogs: Calpeda NM, Pedrollo H/ HF, Ebara 3D. Speroni CFM / mem / CS. The pump is used to work with non-aggressive liquids that are not chemically aggressive to the pump body. The impeller is made of cast iron.
