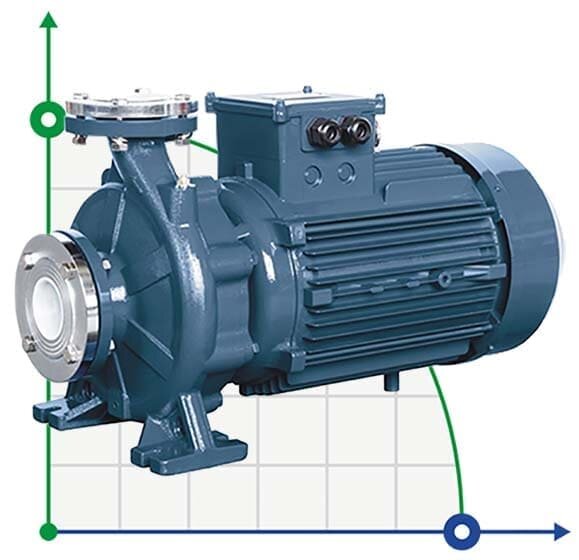

Monoblock centrifugal pump BST4 150-250/22, 1500

Click image for a larger view

Code: 1037407

Producer	BTS Engineering
Material	cast iron
PumpType	console
Output pipe diameter	DN150
Input pipe diameter	DN200
Max.temperature, C	120
Weight, kg	286
Explosion protection	No
Pump capacity, m3/h	300
Serial number of the pump	BST4
Drive Type	electric
Feed height, m	20.8
Country of Origin	China
Warranty, months	12
Power capacity, kW	22
Length of transport packing, cm	104
Width of transport packing, cm	54
Height of transport packing, cm	83
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 500
Protection	IP55
Housing material	Сast iron
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	300
Nom.head, m	20.8
Impeller material	cast iron
Transport packing volume, cbm	0,466
Analogue for	Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, Pedrollo HF, Calpeda NM

Show all features (30)

Documentation

Description Monoblock centrifugal pump BST4 150-250/22, 1500

The BST4 series monoblock pump is designed for heating, water supply , pressure boosting systems, non-aggressive liquids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, cooling fluids, drilling fluids, mixtures of liquids, solvents. Analogs: Calpeda NM, Pedrollo H/HF, Ebara 3D. Speroni CFM/mem/CS The pump is used to work with both non-aggressive liquids that are not chemically aggressive towards the pump body. The impeller is made of cast iron.

Category: Monobloc Console Pumps Made Of Cast Iron

Features Monoblock centrifugal pump BST4 150-250/22, 1500

Producer	BTS Engineering
Material	cast iron
PumpType	console
Output pipe diameter	DN150
Input pipe diameter	DN200
Max.temperature, C	120
Weight, kg	286
Explosion protection	No
Pump capacity, m3/h	300
Serial number of the pump	BST4
Drive Type	electric
Feed height, m	20.8
Country of Origin	China
Warranty, months	12
Power capacity, kW	22
Length of transport packing, cm	104
Width of transport packing, cm	54
Height of transport packing, cm	83
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 500
Protection	IP55
Housing material	Сast iron
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	300
Nom.head, m	20.8
Impeller material	cast iron
Transport packing volume, cbm	0,466
Analogue for	Speroni CS, Speroni MEM, Speroni CFM, Ebara 3D, Pedrollo HF, Calpeda NM
