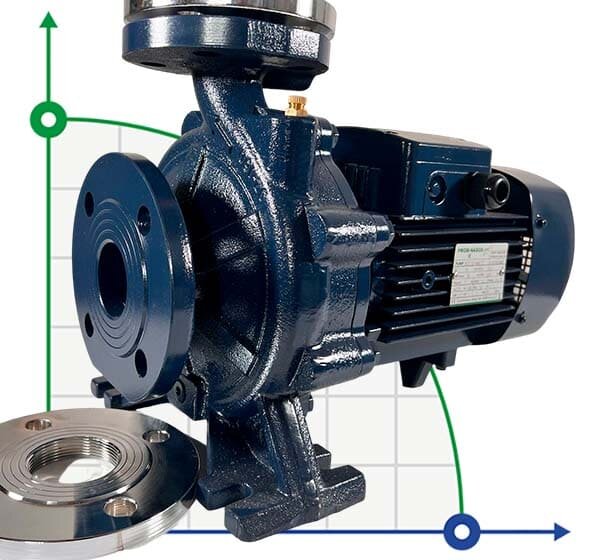

Monoblock centrifugal pump BSTm 32-125/0.7, 3000

Click image for a larger view

More +5

Code: 1019102

(0 review)

Producer	BTS Engineering
Material	cast iron
PumpType	console
Output pipe diameter	32
Input pipe diameter	50
Max.temperature, C	120
Weight, kg	27
Explosion protection	No
Pump capacity, cu.m/hour	12.5
Serial number of the pump	BST
Drive Type	electric
Feed height, m	13.5
Country of Origin	China
Warranty, months	12
Power capacity, kW	0,75
Length of transport packing, cm	49,5
Width of transport packing, cm	27
Height of transport packing, cm	34
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	Сast iron
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	12.5
Nom.head, m	13.5
Impeller material	AISI 304 stainless steel
Height of transport volume, cbm	0,045
Application	технологических жидкостей, тосола, антифриза, СОЖ, тормозных жидкостей, систем отопления, водоснабжения, неагрессивных жидкостей, моющих средств, глицерина, повышения давления
Analogue for	Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, Calpeda NM

Show all features (31)

Documentation

Description Monoblock centrifugal pump BSTm 32-125/0.7, 3000

BST monobloc pump. Purpose: heating systems, water systems, pressure systems, non-aggressive fluids, glycerin, antifreeze, antifreeze, coolant, detergents, process fluids, brake fluids, coolants, drilling mixtures, liquid mixtures, solvents. Analogs: Calpeda NM, Pedrollo H/ HF, Ebara 3D. Speroni CFM / mem / CS. The pump is used to work with non-aggressive liquids that are not chemically aggressive to the pump body. The impeller is made of cast iron.

Category: Monobloc Console Pumps Made Of Cast Iron

Features Monoblock centrifugal pump BSTm 32-125/0.7, 3000

Producer	BTS Engineering
Material	cast iron
PumpType	console
Output pipe diameter	32
Input pipe diameter	50
Max.temperature, C	120
Weight, kg	27
Explosion protection	No
Pump capacity, cu.m/hour	12.5
Serial number of the pump	BST
Drive Type	electric
Feed height, m	13.5
Country of Origin	China
Warranty, months	12
Power capacity, kW	0,75
Length of transport packing, cm	49,5
Width of transport packing, cm	27
Height of transport packing, cm	34
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	Сast iron
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	12.5
Nom.head, m	13.5
Impeller material	AISI 304 stainless steel
Height of transport volume, cbm	0,045
Application	технологических жидкостей, тосола, антифриза, СОЖ, тормозных жидкостей, систем отопления, водоснабжения, неагрессивных жидкостей, моющих средств, глицерина, повышения давления
Analogue for	Ebara 3D, Speroni CFM, Speroni MEM, Speroni CS, Pedrollo HF, Calpeda NM
