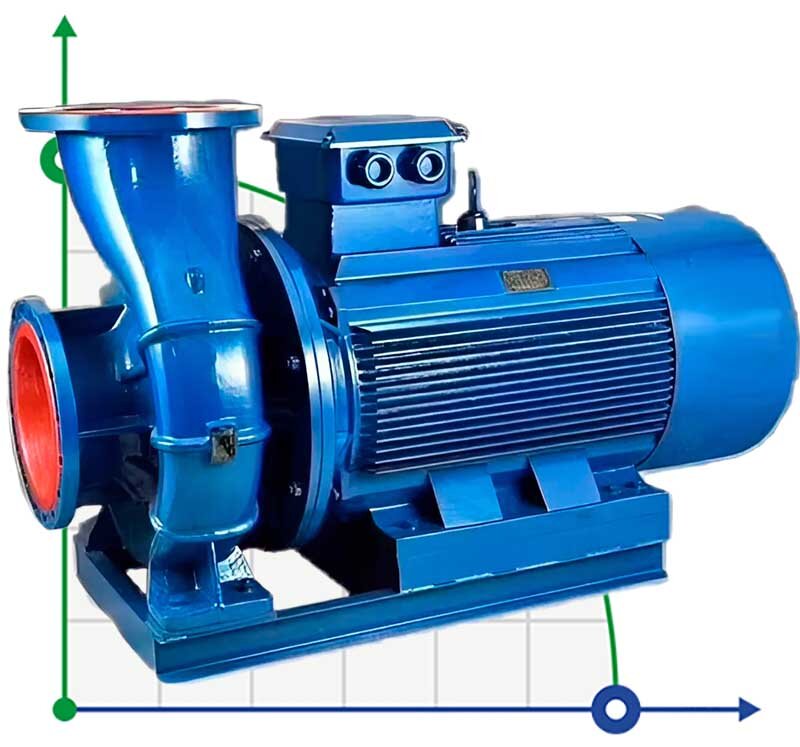

TKW 250/235-37/4 (500/17), 37 kW, 1480 нorizontal centrifugal pump

Code: 1047803
(0 review)
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter250
Input pipe diameter250
Material of flow channelcast iron
Weight, kg550
Explosion protectionNo
Suction capacity (NPSH), m5
Pump capacity, cu.m/hour500
Serial number of the pumpTKW
Drive Typeelectric
Feed height, m17
Country of OriginChina
Warranty, months12
Power capacity, kW37
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h500
Nom.head, m17
Impeller diameter, mm235
Applicationводоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial horizontal pumps of the TKW series are used for fire extinguishing systems, washing, filtration and purification systems, swimming pools, fountain installations, irrigation and watering of fields, municipal water supply, technical water supply systems, air conditioning and heating systems, and liquid cooling systems.
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter250
Input pipe diameter250
Material of flow channelcast iron
Weight, kg550
Explosion protectionNo
Suction capacity (NPSH), m5
Pump capacity, cu.m/hour500
Serial number of the pumpTKW
Drive Typeelectric
Feed height, m17
Country of OriginChina
Warranty, months12
Power capacity, kW37
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h500
Nom.head, m17
Impeller diameter, mm235
Applicationводоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни

Download instructions, catalog for TKW 250/235-37/4 (500/17), 37 kW, 1480 нorizontal centrifugal pump
