| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | DN250 |
| Input pipe diameter | DN250 |
| Material of flow channel | cast iron |
| Weight, kg | 920 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 5 |
| Pump capacity, m3/h | 428 |
| Serial number of the pump | TKW |
| Drive Type | electric |
| Feed height, m | 35 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 75 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 480 |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 428 |
| Nom.head, m | 35 |
| Impeller diameter, mm | 320 |
| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | DN250 |
| Input pipe diameter | DN250 |
| Material of flow channel | cast iron |
| Weight, kg | 920 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 5 |
| Pump capacity, m3/h | 428 |
| Serial number of the pump | TKW |
| Drive Type | electric |
| Feed height, m | 35 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 75 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 480 |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 428 |
| Nom.head, m | 35 |
| Impeller diameter, mm | 320 |

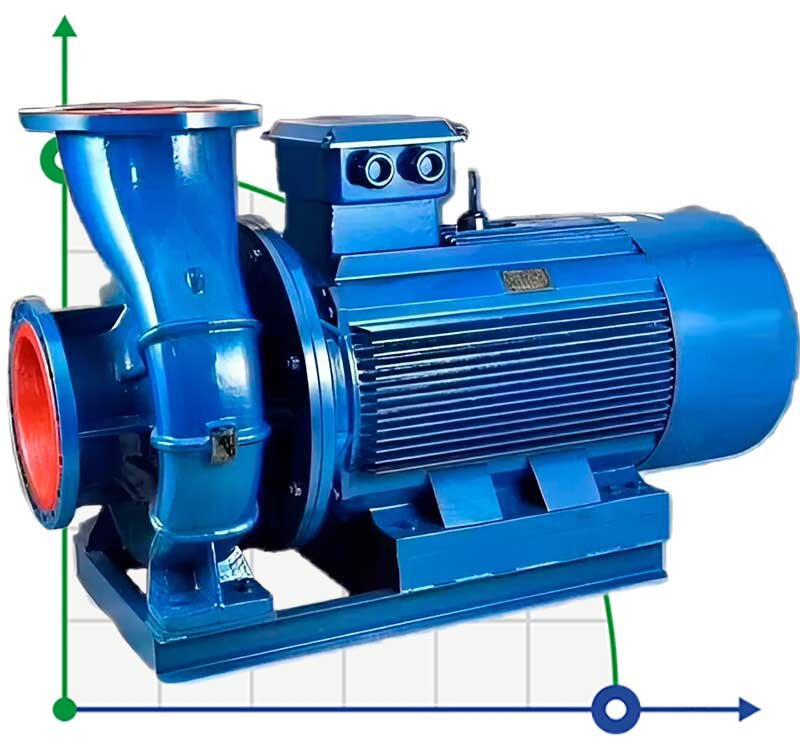

Download instructions, catalog for TKW 250/320-75/4 (428/35), 75 kW, 1480 нorizontal centrifugal pump
