| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | 50 |
| Input pipe diameter | 50 |
| Material of flow channel | cast iron |
| Weight, kg | 45 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 2,3 |
| Pump capacity, m3/h | 12.5 |
| Serial number of the pump | TKW |
| Drive Type | electric |
| Feed height, m | 20 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 1,5 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 12.5 |
| Nom.head, m | 20 |
| Impeller diameter, mm | 125 |
| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | console |
| Output pipe diameter | 50 |
| Input pipe diameter | 50 |
| Material of flow channel | cast iron |
| Weight, kg | 45 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 2,3 |
| Pump capacity, m3/h | 12.5 |
| Serial number of the pump | TKW |
| Drive Type | electric |
| Feed height, m | 20 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 1,5 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 12.5 |
| Nom.head, m | 20 |
| Impeller diameter, mm | 125 |

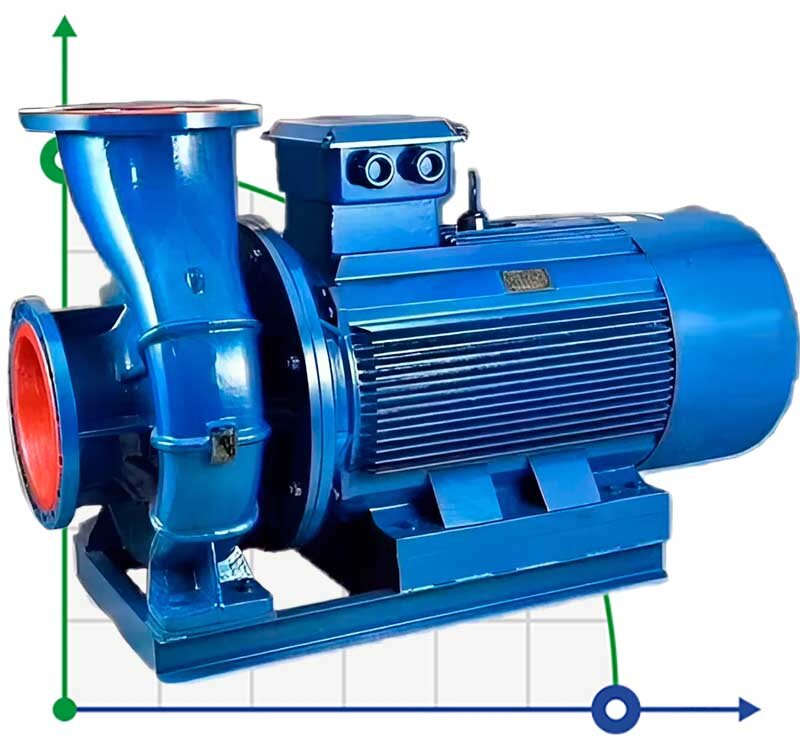

Download instructions, catalog for TKW 50/125-1.5/2 (12,5/20), 1,5 kW, 2900 нorizontal centrifugal pump
