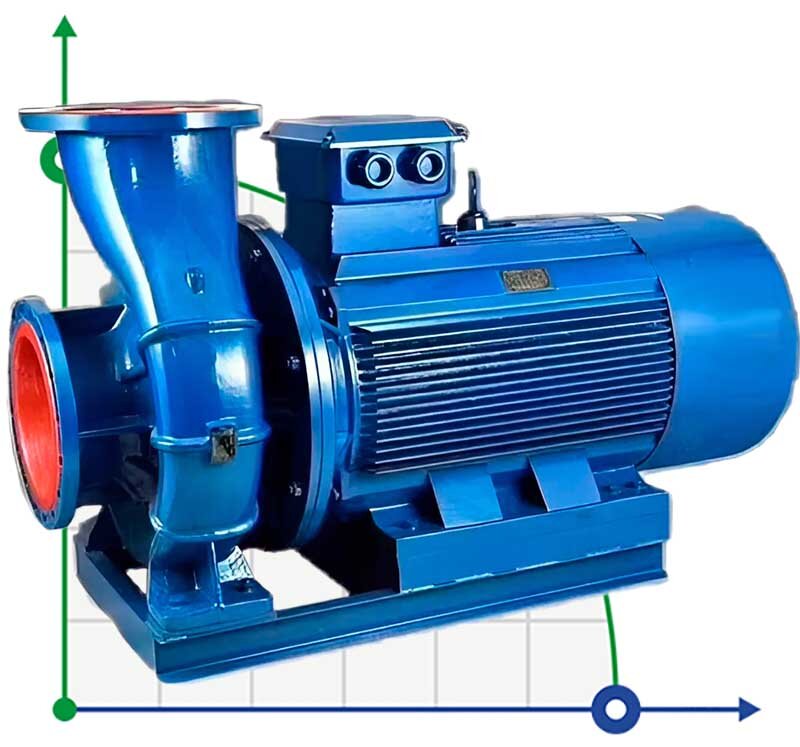

TKW 80/235-30/2 (93,5/70), 30 kW, 2900 нorizontal centrifugal pump

Click image for a larger view

Code: 1047611

(0 review)

Producer	BTS Engineering
Material	cast iron
PumpType	console
Output pipe diameter	80
Input pipe diameter	80
Material of flow channel	cast iron
Weight, kg	335
Explosion protection	No
Suction capacity (NPSH), m	4
Pump capacity, cu.m/hour	93.5
Serial number of the pump	TKW
Drive Type	electric
Feed height, m	70
Country of Origin	China
Warranty, months	12
Power capacity, kW	30
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	93.5
Nom.head, m	70
Impeller diameter, mm	235
Application	водоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни

Show all features (24)

Documentation

Description TKW 80/235-30/2 (93,5/70), 30 kW, 2900 нorizontal centrifugal pump

Industrial horizontal pumps of the TKW series are used for fire extinguishing systems, washing, filtration and purification systems, swimming pools, fountain installations, irrigation and watering of fields, municipal water supply, technical water supply systems, air conditioning and heating systems, and liquid cooling systems.

Category: Monobloc Console Pumps Made Of Cast Iron

Features TKW 80/235-30/2 (93,5/70), 30 kW, 2900 нorizontal centrifugal pump

Producer	BTS Engineering
Material	cast iron
PumpType	console
Output pipe diameter	80
Input pipe diameter	80
Material of flow channel	cast iron
Weight, kg	335
Explosion protection	No
Suction capacity (NPSH), m	4
Pump capacity, cu.m/hour	93.5
Serial number of the pump	TKW
Drive Type	electric
Feed height, m	70
Country of Origin	China
Warranty, months	12
Power capacity, kW	30
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	93.5
Nom.head, m	70
Impeller diameter, mm	235
Application	водоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни
