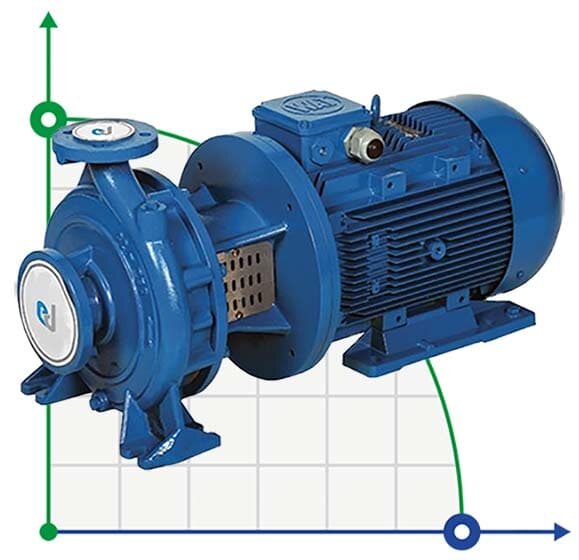

Circulation pump ETKF-M 40-200, 7,5 kW, 3000

Click image for a larger view

Code: 1037178

(0 review)

Producer	ERDURO
Material	cast iron
Max. head, m	45
PumpType	console
Output pipe diameter	DN 40
Input pipe diameter	DN65
Max.temperature, C	100
Weight, kg	84
Max.flow rate, m3/h	40
Explosion protection	No
Pump capacity, cu.m/hour	40
Serial number of the pump	ETKF-M
Drive Type	electric
Feed height, m	45
Country of Origin	Turkey
Power capacity, kW	7,5
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Housing material	Сast iron
Seal	Mechanical Seal
Type of configuration	with engine
Installation Type	horizontal
Impeller material	cast iron
Impeller diameter, mm	178
Application	сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
Analogue for	Speroni CS, Speroni MEM, Speroni CFM, Pedrollo HF, Calpeda NM, Ebara 3D

Show all features (26)

Documentation

Description Circulation pump ETKF-M 40-200, 7,5 kW, 3000

ETKF-M centrifugal monoblock pumps with a coupling connection are designed for pumping non-abrasive clean and conditionally clean liquids. The pump dimensions comply with the TS EN 733 standard. The suction and discharge flanges comply with the ISO 7005-2/PN 16 standard. Sealing of the working chamber is provided by a mechanical seal. A closed impeller is used. Application: agricultural irrigation and sprinkling; heating and cooling systems; fire extinguishing systems; for drainage, and other industrial purposes. Technical data: discharge flange: DN32 ... DN150. Capacity: up to 550 m3/h. Height: 105 m. Speed: 1450-3600 rpm (50 Hz-60 Hz). Operating temperature: -10°C ' to +105°C. Housing pressure (Pmax): 10 Bar (16 bar).

Category: Monobloc Console Pumps Made Of Cast Iron

Features Circulation pump ETKF-M 40-200, 7,5 kW, 3000

Producer	ERDURO
Material	cast iron
Max. head, m	45
PumpType	console
Output pipe diameter	DN 40
Input pipe diameter	DN65
Max.temperature, C	100
Weight, kg	84
Max.flow rate, m3/h	40
Explosion protection	No
Pump capacity, cu.m/hour	40
Serial number of the pump	ETKF-M
Drive Type	electric
Feed height, m	45
Country of Origin	Turkey
Power capacity, kW	7,5
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Housing material	Сast iron
Seal	Mechanical Seal
Type of configuration	with engine
Installation Type	horizontal
Impeller material	cast iron
Impeller diameter, mm	178
Application	сушильной камеры, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
Analogue for	Speroni CS, Speroni MEM, Speroni CFM, Pedrollo HF, Calpeda NM, Ebara 3D
