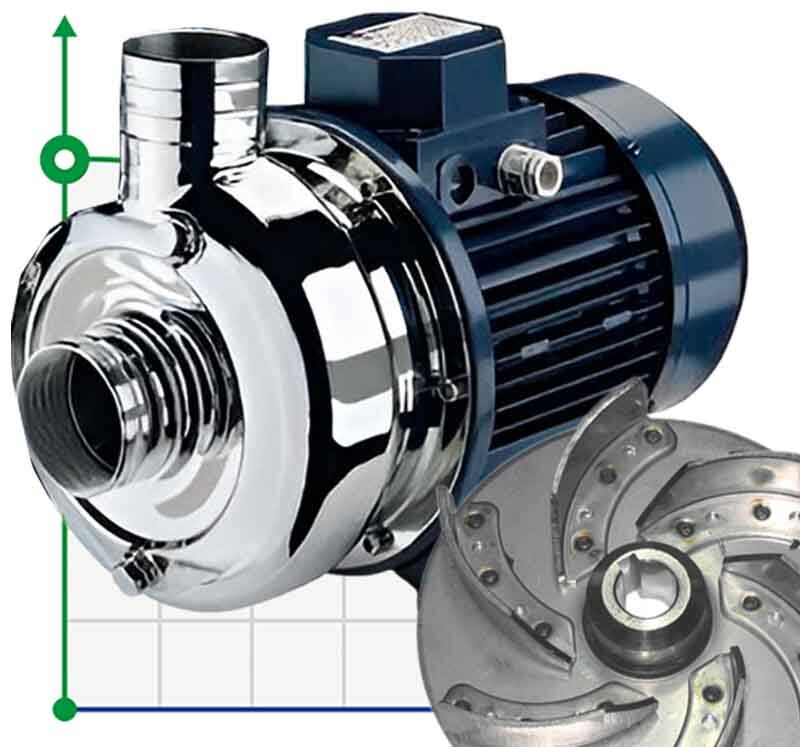

Stainless steel pump CRX EBARA DWO 150, 1.1 kW, 33 m3/h, 9.8m, 380V/T, AISI 304 with open impeller

Click image for a larger view

Code: 1051220

Producer	ST Pompe
Material	AISI 304 stainless steel
Max. head, m	9.8
PumpType	console
Output pipe diameter	2"
Input pipe diameter	2"
Max.temperature, C	90
Weight, kg	16,2
Max.flow rate, m3/h	33
Explosion protection	No
Suction capacity (NPSH), m	7
Pump capacity, cu.m/hour	33
Serial number of the pump	CRX
Drive Type	electric
Feed height, m	9.8
Country of Origin	Italy
Power capacity, kW	1,1
Length of transport packing, cm	432
Width of transport packing, cm	205
Height of transport packing, cm	280
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Ceramic/Carbon/NBR
Shaft material	AISI 303
Type of configuration	with engine
Installation Type	horizontal
Impeller material	AISI 304 stainless steel
Pressure, bar	8
Application	пива, мойки овощей, молока, мойки мяса, мойки рыбы, систем орошения, ирригации, wine, water
Analogue for	Ebara DWO, Speroni WX, Leo ABK

Show all features (32)

Description Stainless steel pump CRX EBARA DWO 150, 1.1 kW, 33 m3/h, 9.8m, 380V/T, AISI 304 with open impeller

The CRX series open impeller pumps, made entirely of stainless steel, are suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. The open impeller allows the pumping of clean or relatively dirty water with solids up to 8 mm in diameter. Pump housing, impeller, diffusers: AISI 304 stainless steel. Motor shaft: AISI 303 stainless steel. Motor housing and cover: aluminium. Mechanical seal: Cer/Car/NBR.

Category: Monobloc Console Pumps With An Open Impeller

Features Stainless steel pump CRX EBARA DWO 150, 1.1 kW, 33 m3/h, 9.8m, 380V/T, AISI 304 with open impeller

Producer	ST Pompe
Material	AISI 304 stainless steel
Max. head, m	9.8
PumpType	console
Output pipe diameter	2"
Input pipe diameter	2"
Max.temperature, C	90
Weight, kg	16,2
Max.flow rate, m3/h	33
Explosion protection	No
Suction capacity (NPSH), m	7
Pump capacity, cu.m/hour	33
Serial number of the pump	CRX
Drive Type	electric
Feed height, m	9.8
Country of Origin	Italy
Power capacity, kW	1,1
Length of transport packing, cm	432
Width of transport packing, cm	205
Height of transport packing, cm	280
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Ceramic/Carbon/NBR
Shaft material	AISI 303
Type of configuration	with engine
Installation Type	horizontal
Impeller material	AISI 304 stainless steel
Pressure, bar	8
Application	пива, мойки овощей, молока, мойки мяса, мойки рыбы, систем орошения, ирригации, wine, water
Analogue for	Ebara DWO, Speroni WX, Leo ABK
