Producer | BTS Engineering |
Material | AISI 304 stainless steel |
Max. head, m | 8 |
PumpType | console |
Output pipe diameter | G1 1/2 |
Input pipe diameter | G1 1/2 |
Material of flow channel | AISI 304 stainless steel |
Max.temperature, C | 80 |
Weight, kg | 10,5 |
Max.flow rate, m3/h | 18 |
Explosion protection | No |
Pump capacity, cu.m/hour | 18 |
Serial number of the pump | BK |
Drive Type | electric |
Feed height, m | 8 |
Country of Origin | China |
Warranty, months | 12 |
Power capacity, kW | 0,75 |
Dimensions, mm | 358x170x226 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 2 900 |
Type of configuration | with engine |
Installation Type | horizontal |
Impeller type | open impeller |
Producer | BTS Engineering |
Material | AISI 304 stainless steel |
Max. head, m | 8 |
PumpType | console |
Output pipe diameter | G1 1/2 |
Input pipe diameter | G1 1/2 |
Material of flow channel | AISI 304 stainless steel |
Max.temperature, C | 80 |
Weight, kg | 10,5 |
Max.flow rate, m3/h | 18 |
Explosion protection | No |
Pump capacity, cu.m/hour | 18 |
Serial number of the pump | BK |
Drive Type | electric |
Feed height, m | 8 |
Country of Origin | China |
Warranty, months | 12 |
Power capacity, kW | 0,75 |
Dimensions, mm | 358x170x226 |
Power supply | 3х380 V, 50 Hz |
Rate of turn, rpm | 2 900 |
Type of configuration | with engine |
Installation Type | horizontal |
Impeller type | open impeller |

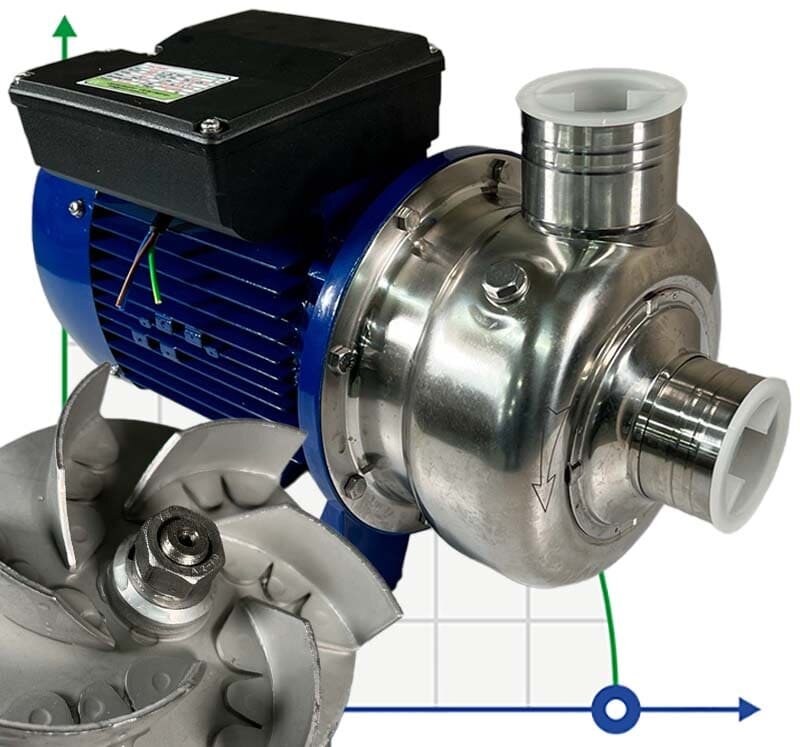

Download instructions, catalog for Centrifugal beer wort pump BK100, 0.75kW, AISI304, 380V/50Hz, 2900 with open impeller
