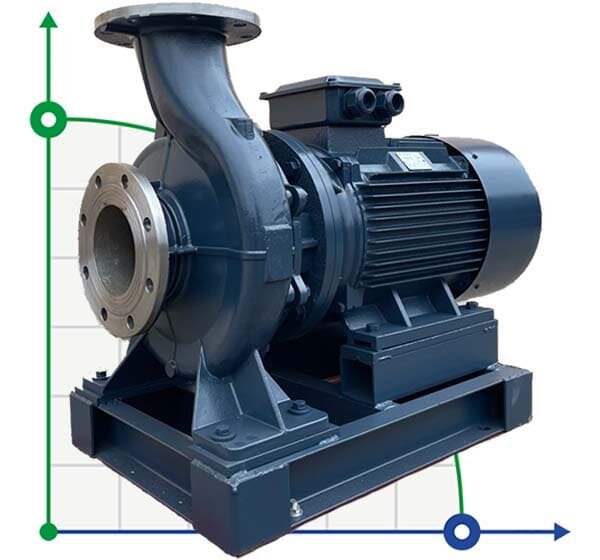

BGWH 300-315B (580/24), 55kW, 1480 Stainless Steel Horizontal Pump

Code: 1024372
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter300
Input pipe diameter300
Material of flow channelAISI 304 stainless steel
Max.temperature, C120
Weight, kg750
Explosion protectionNo
Pump capacity, cu.m/hour580
Serial number of the pumpBGWH
Drive Typeelectric
Feed height, m24
Country of OriginChina
Warranty, months12
Power capacity, kW55
Dimensions, mm1000x670x1480
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
ProtectionIP55
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h580
Nom.head, m24
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$18,252.33 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter300
Input pipe diameter300
Material of flow channelAISI 304 stainless steel
Max.temperature, C120
Weight, kg750
Explosion protectionNo
Pump capacity, cu.m/hour580
Serial number of the pumpBGWH
Drive Typeelectric
Feed height, m24
Country of OriginChina
Warranty, months12
Power capacity, kW55
Dimensions, mm1000x670x1480
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
ProtectionIP55
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h580
Nom.head, m24
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Download instructions, catalog for BGWH 300-315B (580/24), 55kW, 1480 Stainless Steel Horizontal Pump
