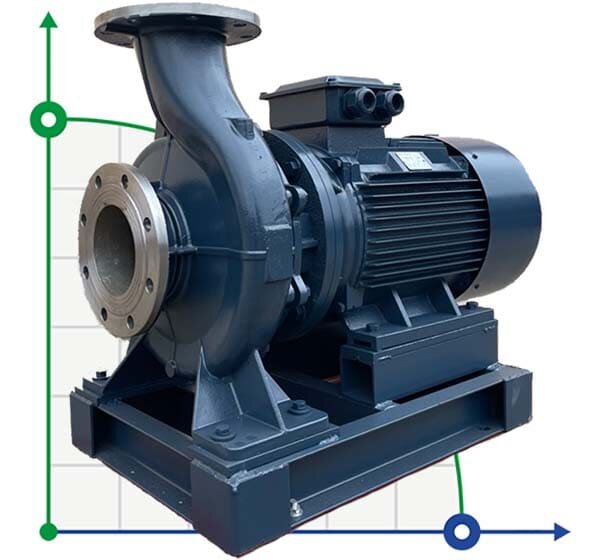

BGWH 80-250(I)B (87/60), 30kW, 2880 Stainless Steel Horizontal Pump

Click image for a larger view

More +2

Code: 1024230

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	80
Input pipe diameter	80
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	315
Explosion protection	No
Pump capacity, cu.m/hour	87
Serial number of the pump	BGWH
Drive Type	electric
Feed height, m	60
Country of Origin	China
Warranty, months	12
Power capacity, kW	30
Dimensions, mm	550x520x1020
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 880
Protection	IP55
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	87
Nom.head, m	60
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Show all features (25)

Documentation

Description BGWH 80-250(I)B (87/60), 30kW, 2880 Stainless Steel Horizontal Pump

Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.

Category: Monobloc Stainless Console Pumps

Features BGWH 80-250(I)B (87/60), 30kW, 2880 Stainless Steel Horizontal Pump

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	80
Input pipe diameter	80
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	315
Explosion protection	No
Pump capacity, cu.m/hour	87
Serial number of the pump	BGWH
Drive Type	electric
Feed height, m	60
Country of Origin	China
Warranty, months	12
Power capacity, kW	30
Dimensions, mm	550x520x1020
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 880
Protection	IP55
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	87
Nom.head, m	60
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
