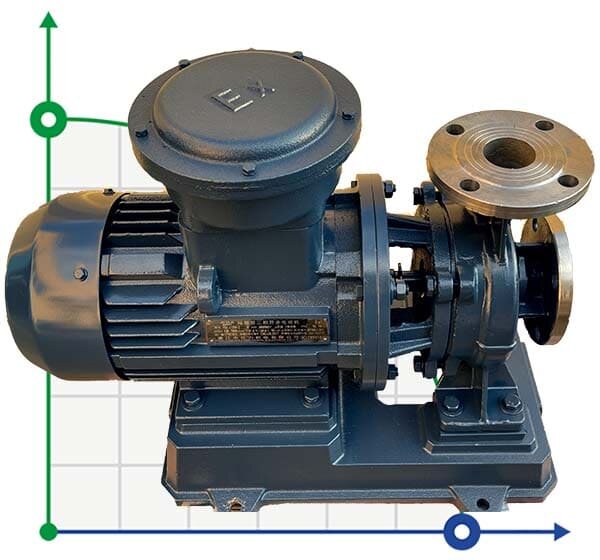

BGWHB 300-400C (561/33), 75kW, 1480, Ex Stainless Steel Horizontal Pump

Click image for a larger view

More +2

Code: 1024927

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	300
Input pipe diameter	300
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	950
Explosion protection	Yes
Pump capacity, cu.m/hour	561
Serial number of the pump	BGWHB
Drive Type	electric
Feed height, m	33
Country of Origin	China
Warranty, months	12
Power capacity, kW	75
Dimensions, mm	1500x670x1530
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 480
Protection	IP55
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	561
Nom.head, m	33
Application	сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, каустика, alkalis, paints

Show all features (25)

Documentation

Description BGWHB 300-400C (561/33), 75kW, 1480, Ex Stainless Steel Horizontal Pump

BGWHB series pumps with Ex motor (explosion-proof version) ATEX is an abbreviation that stands for "ATmosphères EXplosibles" (French for "explosive atmospheres"). For pumping chemically aggressive liquids, saline solutions, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing equipment. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.

Category: Monobloc Stainless Console Pumps

Features BGWHB 300-400C (561/33), 75kW, 1480, Ex Stainless Steel Horizontal Pump

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	300
Input pipe diameter	300
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	950
Explosion protection	Yes
Pump capacity, cu.m/hour	561
Serial number of the pump	BGWHB
Drive Type	electric
Feed height, m	33
Country of Origin	China
Warranty, months	12
Power capacity, kW	75
Dimensions, mm	1500x670x1530
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 480
Protection	IP55
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	561
Nom.head, m	33
Application	сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, каустика, alkalis, paints
