| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| PumpType | console |
| Output pipe diameter | DN80 |
| Input pipe diameter | DN80 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 120 |
| Weight, kg | 340 |
| Explosion protection | Yes |
| Pump capacity, m3/h | 44.5 |
| Serial number of the pump | BGWHB |
| Drive Type | electric |
| Feed height, m | 100 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 30 |
| Dimensions, mm | 580x530x1000 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 880 |
| Protection | IP55 |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 44.5 |
| Nom.head, m | 100 |
| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| PumpType | console |
| Output pipe diameter | DN80 |
| Input pipe diameter | DN80 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 120 |
| Weight, kg | 340 |
| Explosion protection | Yes |
| Pump capacity, m3/h | 44.5 |
| Serial number of the pump | BGWHB |
| Drive Type | electric |
| Feed height, m | 100 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 30 |
| Dimensions, mm | 580x530x1000 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 880 |
| Protection | IP55 |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 44.5 |
| Nom.head, m | 100 |

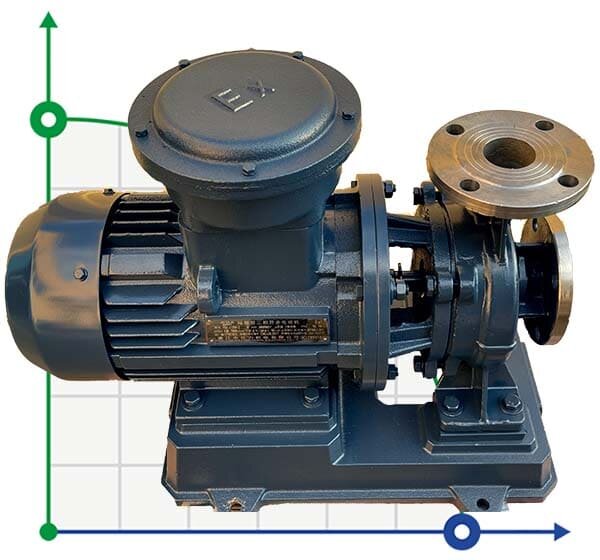

Download instructions, catalog for BGWHB 80-315B (44,5/100), 30kW, 2880, Ex Stainless Steel Horizontal Pump
