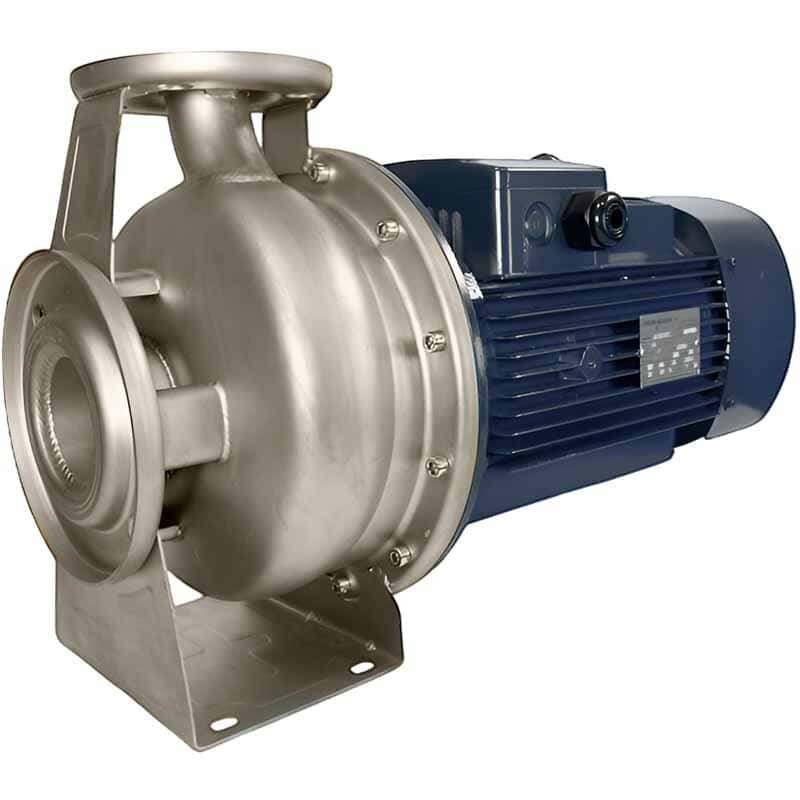

BZ 65-160/11 centrifugal monoblock pump (AISI)

Product list

Home
Pumps
Console Pumps
Monobloc Stainless Console Pumps
BZ 65-160/11 centrifugal monoblock pump (AISI)

BZ 65-160/11 centrifugal monoblock pump (AISI)

Click image for a larger view

Code: 1019141

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	65
Input pipe diameter	80
Max.temperature, C	120
Weight, kg	75
Explosion protection	No
Pump capacity, cu.m/hour	114
Serial number of the pump	BZ
Drive Type	electric
Feed height, m	25.8
Country of Origin	China
Warranty, months	12
Power capacity, kW	11
Length of transport packing, cm	68
Width of transport packing, cm	36
Height of transport packing, cm	55
Power supply	3х380 V, 50 Hz
Protection	IP55
Housing material	AISI 304 stainless steel
Gross weight, kg	85.5
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	114
Nom.head, m	25.8
Impeller material	AISI 304 stainless steel
Height of transport volume, cbm	0,135
Application	браги, мочевины, жидких удобрений, КАС, соков, аммиачной смеси, селевого раствора, сыроватки, каустика, сушильной камеры, молока, salt, wort, wine, brew, food, CIP-washing, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, повышения давления, water

Show all features (30)

Documentation

Description BZ 65-160/11 centrifugal monoblock pump (AISI)

Stainless steel standard pump BZ Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications. Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made. The pumps must be installed in enclosed places, or at least protected against inclement weather. TECHNICAL DESCRIPTION - New stainless steel standard pump - Original design by PURITY - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case in stainless steel AISI 304 - Impeller in stainless steel AISI 304 - Shaft in stainless steel AISI 304 - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar Continuous service S1

Category: Monobloc Stainless Console Pumps

Features BZ 65-160/11 centrifugal monoblock pump (AISI)

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	65
Input pipe diameter	80
Max.temperature, C	120
Weight, kg	75
Explosion protection	No
Pump capacity, cu.m/hour	114
Serial number of the pump	BZ
Drive Type	electric
Feed height, m	25.8
Country of Origin	China
Warranty, months	12
Power capacity, kW	11
Length of transport packing, cm	68
Width of transport packing, cm	36
Height of transport packing, cm	55
Power supply	3х380 V, 50 Hz
Protection	IP55
Housing material	AISI 304 stainless steel
Gross weight, kg	85.5
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	114
Nom.head, m	25.8
Impeller material	AISI 304 stainless steel
Height of transport volume, cbm	0,135
Application	браги, мочевины, жидких удобрений, КАС, соков, аммиачной смеси, селевого раствора, сыроватки, каустика, сушильной камеры, молока, salt, wort, wine, brew, food, CIP-washing, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, повышения давления, water
