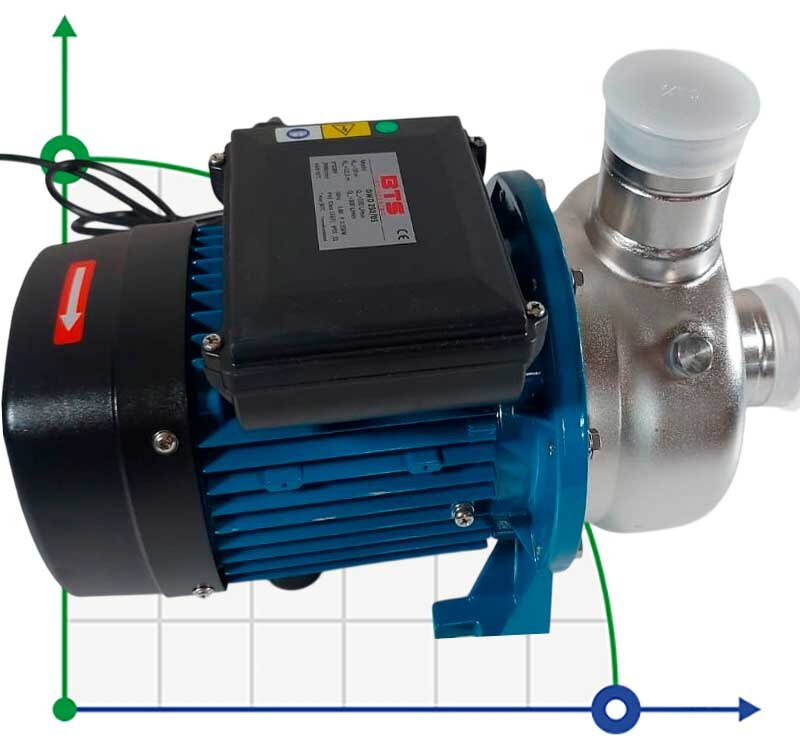

DWO B250/05, 220V/50Hz, INOX centrifugal pump

Code: 1035072
(0 review)
ProducerJEFF
MaterialAISI 304 stainless steel
Max. head, m11
PumpTypeconsole
Output pipe diameterG 1 1/2
Input pipe diameterG 1 1/2
Max.temperature, C90
Weight, kg8
Max.flow rate, m3/h24
Pump capacity, m3/h24
Serial number of the pumpDWO
Drive Typeelectric
Feed height, m11
Country of OriginChina
Power capacity, kW0,55
Dimensions, mm335х172х234
Power supply1х220 V, 50 Hz
Rate of turn, rpm2 900
Nom.pressure, Mpa1
Housing materialAISI 304 stainless steel
Installation Typehorizontal
Nom.flow rate, m3/h15
Nom.head, m7.5
Analogue forLeo ABK, Speroni WX, Ebara DWO
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$250 (netto)
Добавить в сравнение
We deliver anywhere in the world
The flow part of the DWO series centrifugal pumps (body, impeller, bottom, shaft) is made of AISI 304 stainless steel. DWO pumps are single-stage monoblock pumps with a wide-channel closed impeller. The impeller is placed on the extended shaft of the electric motor, and the working chamber is sealed with a mechanical mechanical seal, due to this design, the pump is easy to operate and maintain. Areas of application: pumping of pure liquids containing impurities in agriculture, in technological processes for pumping liquids with a weak solution of acids and alkalis, for wine, beer, milk, water supply, for the preparation of CAS (urea-ammonia mixtures), for use when washing vegetables, fruits, fish, meat and other products.
ProducerJEFF
MaterialAISI 304 stainless steel
Max. head, m11
PumpTypeconsole
Output pipe diameterG 1 1/2
Input pipe diameterG 1 1/2
Max.temperature, C90
Weight, kg8
Max.flow rate, m3/h24
Pump capacity, m3/h24
Serial number of the pumpDWO
Drive Typeelectric
Feed height, m11
Country of OriginChina
Power capacity, kW0,55
Dimensions, mm335х172х234
Power supply1х220 V, 50 Hz
Rate of turn, rpm2 900
Nom.pressure, Mpa1
Housing materialAISI 304 stainless steel
Installation Typehorizontal
Nom.flow rate, m3/h15
Nom.head, m7.5
Analogue forLeo ABK, Speroni WX, Ebara DWO
