DWO B500/2,2T, 380V/50Hz, INOX centrifugal pump

Code: 1029067
(0 review)
ProducerJEFF
MaterialAISI 304 stainless steel
Max. head, m26
PumpTypeconsole
Input pipe diameterG2
Max.temperature, C90
Weight, kg22
Max.flow rate, m3/h39
Pump capacity, m3/h39
Serial number of the pumpDWO
Drive Typeelectric
Feed height, m26
Country of OriginChina
Power capacity, kW2,2
Dimensions, mm415х193х258
Length of transport packing, cm47,5
Width of transport packing, cm25
Height of transport packing, cm32,5
Power supply3х380 V, 50 Hz
Nom.pressure, Mpa1
Housing materialAISI 304 stainless steel
Installation Typehorizontal
Nom.flow rate, m3/h30
Nom.head, m15
Analogue forLeo ABK, Speroni WX, Ebara DWO
Show all features (26)
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$421 (netto)
Добавить в сравнение
We deliver anywhere in the world
The flow part of the DWO series centrifugal pumps (body, impeller, bottom, shaft) is made of AISI 304 stainless steel. DWO pumps are single-stage monoblock pumps with a wide-channel closed impeller. The impeller is placed on the extended shaft of the electric motor, and the working chamber is sealed with a mechanical mechanical seal, due to this design, the pump is easy to operate and maintain. Areas of application: pumping of pure liquids containing impurities in agriculture, in technological processes for pumping liquids with a weak solution of acids and alkalis, for wine, beer, milk, water supply, for the preparation of CAS (urea-ammonia mixtures), for use when washing vegetables, fruits, fish, meat and other products.
ProducerJEFF
MaterialAISI 304 stainless steel
Max. head, m26
PumpTypeconsole
Input pipe diameterG2
Max.temperature, C90
Weight, kg22
Max.flow rate, m3/h39
Pump capacity, m3/h39
Serial number of the pumpDWO
Drive Typeelectric
Feed height, m26
Country of OriginChina
Power capacity, kW2,2
Dimensions, mm415х193х258
Length of transport packing, cm47,5
Width of transport packing, cm25
Height of transport packing, cm32,5
Power supply3х380 V, 50 Hz
Nom.pressure, Mpa1
Housing materialAISI 304 stainless steel
Installation Typehorizontal
Nom.flow rate, m3/h30
Nom.head, m15
Analogue forLeo ABK, Speroni WX, Ebara DWO
Loading...
Products from the same category
2CD-34STB, AISI 304 centrifugal pump
1029077
Producer
JEFF
Material
AISI 304 stainless steel
Preorder
0
$562
CD-26ST, AISI 304 centrifugal pump
1035074
Producer
JEFF
Material
AISI 304 stainless steel
In stock
0
$276
DWO B300/1,1T, 380V/50Hz, AISI 304 centrifugal pump
1029064
Producer
JEFF
Material
AISI 304 stainless steel
Preorder
0
$403

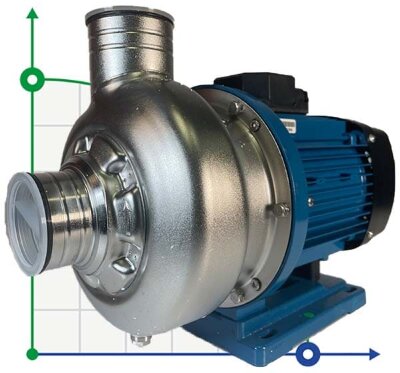

DWO B300/1,5T, 380V/50Hz, AISI 304 centrifugal pump
1029065
Producer
JEFF
Material
AISI 304 stainless steel
Preorder
0
$415
DWO B500/1,5T, 380V/50Hz, AISI 304 centrifugal pump
1029066
Producer
JEFF
Material
AISI 304 stainless steel
Preorder
0
$415

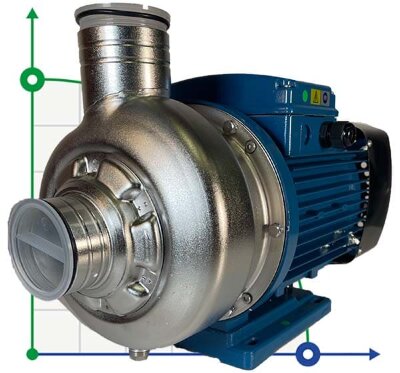

DWO B500/3,0T, 380V/50Hz, INOX centrifugal pump
1029068
Producer
JEFF
Material
AISI 304 stainless steel
Preorder
0
$461

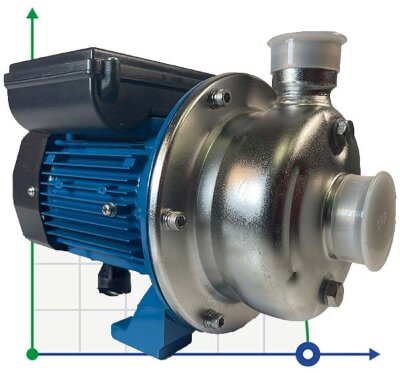

Pump for wort, brew, wine, beer DWO B50/025, 220V/50Hz, AISI 304
1035070
Producer
JEFF
Material
AISI 304 stainless steel
Preorder
0
$178

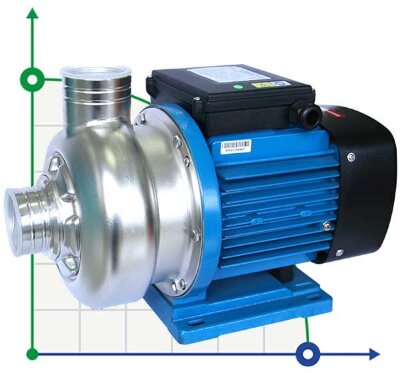

Pump for juice, wine, beer DWO B50/037, 380V/50Hz, AISI 304
1035071
Producer
JEFF
Material
AISI 304 stainless steel
Preorder
0
$171

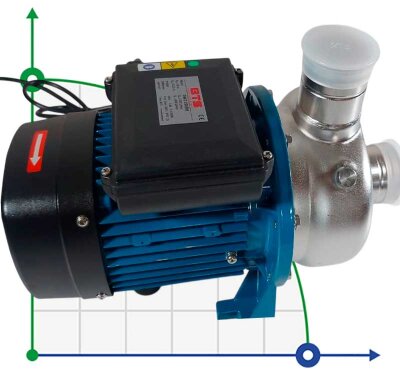

DWO B250/05, 220V/50Hz, INOX centrifugal pump
