Pump GZA 50-32-160/3,0

Product list

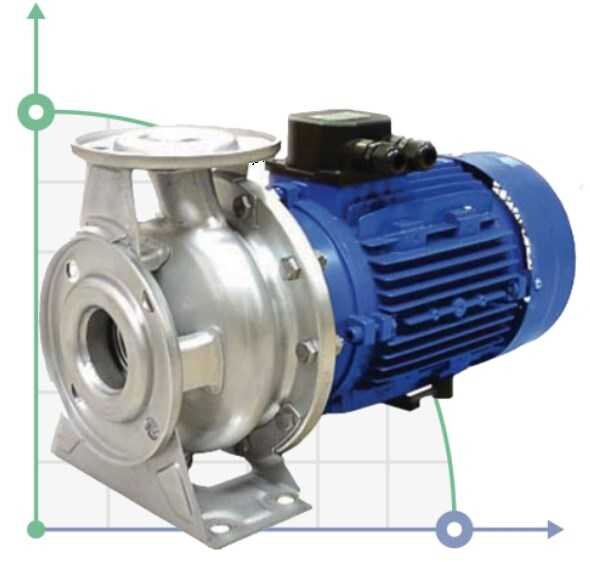

Click image for a larger view

Code: 1004038

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	44
PumpType	console
Output pipe diameter	DN32
Input pipe diameter	DN50
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Max.flow rate, m3/h	20
Explosion protection	No
Pump capacity, cu.m/hour	20
Availability of spare parts	yes
Serial number of the pump	SM
Drive Type	electric
Feed height, m	44
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	1
Installation Type	horizontal
Application	аммиачной смеси, соков, КАС, жидких удобрений, мочевины, селевого раствора, браги, молока, сушильной камеры, каустика, сыроватки, salt, CIP-washing, brew, wort, wine, food, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, повышения давления, water
Analogue for	Johnson, Flygt, KOLMEKS, Kenle, HYPRO, Hydro-Vacuum, Honda, Onga, Omnigena, Odwerk, Nocchi, LOWARA, Kripsol, Foras, PERKINS, APV, Varna, Bronzoni, ASTA, Aquatechnika, Aquario, AlfaLaval, FRISTAM, Ebara, Alweller, DPPumps, DAB, Cornell, Calpeda, Hobart, Hilge, Hidrostal, SAER, Simaco, Pentax, INOXPA, PentairSwimmey, KSB, Unitech, Speroni, SOMA, Wilo, TAJFUN, Greenpumps, OMAC, Zenit, TEREX, Svanehoj, ThuneEureka, Sterling, Rovatti, CAPRARI, Varisco, Allweiler, SIHI, Packo, Sprut, GEA, Grundfos

Show all features (23)

Documentation

Description Pump GZA 50-32-160/3,0

The GZA stainless steel centrifugal pump is designed for pumping: food products, milk, sugar syrups, wort, Braga, wine, wine materials, whey, suspensions. It is used in water supply for water supply in pressure boosting stations, chemicals, chemically active products, caustic salt (salt solutions), butter, milk, pure water, urea-ammonia fertilizers, acids, CAS pumping, ammonia water, liquid fertilizers and water. The pump body, as well as all working elements in contact with the pumped medium, are made of high-quality stainless steel. The pump motor is asynchronous, placed horizontally. Warranty - 2 years. Warranty and post-warranty service. Official service center.

Category: Monobloc Stainless Console Pumps

Features Pump GZA 50-32-160/3,0

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	44
PumpType	console
Output pipe diameter	DN32
Input pipe diameter	DN50
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Max.flow rate, m3/h	20
Explosion protection	No
Pump capacity, cu.m/hour	20
Availability of spare parts	yes
Serial number of the pump	SM
Drive Type	electric
Feed height, m	44
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	1
Installation Type	horizontal
Application	аммиачной смеси, соков, КАС, жидких удобрений, мочевины, селевого раствора, браги, молока, сушильной камеры, каустика, сыроватки, salt, CIP-washing, brew, wort, wine, food, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, повышения давления, water
Analogue for	Johnson, Flygt, KOLMEKS, Kenle, HYPRO, Hydro-Vacuum, Honda, Onga, Omnigena, Odwerk, Nocchi, LOWARA, Kripsol, Foras, PERKINS, APV, Varna, Bronzoni, ASTA, Aquatechnika, Aquario, AlfaLaval, FRISTAM, Ebara, Alweller, DPPumps, DAB, Cornell, Calpeda, Hobart, Hilge, Hidrostal, SAER, Simaco, Pentax, INOXPA, PentairSwimmey, KSB, Unitech, Speroni, SOMA, Wilo, TAJFUN, Greenpumps, OMAC, Zenit, TEREX, Svanehoj, ThuneEureka, Sterling, Rovatti, CAPRARI, Varisco, Allweiler, SIHI, Packo, Sprut, GEA, Grundfos
