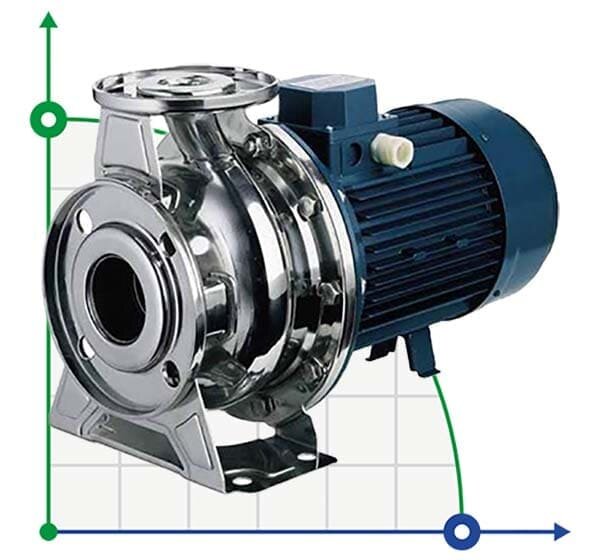

Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Click image for a larger view

Code: 1039395

Producer	ST Pompe
Material	AISI 304 stainless steel
Max. head, m	53.5
PumpType	console
Output pipe diameter	DN65
Input pipe diameter	DN80
Max.temperature, C	90
Weight, kg	127,5
Max.flow rate, m3/h	138
Explosion protection	No
Suction capacity (NPSH), m	7
Pump capacity, m3/h	138
Serial number of the pump	NX
Drive Type	electric
Feed height, m	53.5
Country of Origin	Italy
Power capacity, kW	18,5
Length of transport packing, cm	88
Width of transport packing, cm	39
Height of transport packing, cm	53,2
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Ceramic/Carbon/NBR
Shaft material	AISI 304 stainless steel
Type of configuration	with engine
Installation Type	horizontal
Impeller material	AISI 304 stainless steel
Pressure, bar	10
Analogue for	Speroni CX, Ebara 3M

Show all features (32)

Documentation

Description Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Centrifugal pumps of the NX series are used for pumping chemically clean water without solid particles in heating and cooling systems, irrigation systems, fire-fighting systems. All parts of the pump in contact with the liquid are made of stainless steel and designed in accordance with DIN 24255 (UNI EN 733). The wide range and high reliability make these pumps suitable for agricultural, civil and industrial applications. Pump housing, impeller, diffusers: stainless steel AISI 304. Motor shaft: stainless steel AISI 304. Motor housing and cover: aluminum. Mechanical seal: Cer/Car/NBR (standard).

Category: Monobloc Stainless Console Pumps

Features Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)

Producer	ST Pompe
Material	AISI 304 stainless steel
Max. head, m	53.5
PumpType	console
Output pipe diameter	DN65
Input pipe diameter	DN80
Max.temperature, C	90
Weight, kg	127,5
Max.flow rate, m3/h	138
Explosion protection	No
Suction capacity (NPSH), m	7
Pump capacity, m3/h	138
Serial number of the pump	NX
Drive Type	electric
Feed height, m	53.5
Country of Origin	Italy
Power capacity, kW	18,5
Length of transport packing, cm	88
Width of transport packing, cm	39
Height of transport packing, cm	53,2
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Ceramic/Carbon/NBR
Shaft material	AISI 304 stainless steel
Type of configuration	with engine
Installation Type	horizontal
Impeller material	AISI 304 stainless steel
Pressure, bar	10
Analogue for	Speroni CX, Ebara 3M

Documentation Stainless steel pump for pumping industrial liquids NX65/2500 (200), 18.5 kW, 138 m3/h, 53.5 m, 380V/T, AISI 304 (EBARA 3M 65-200/18.5)
