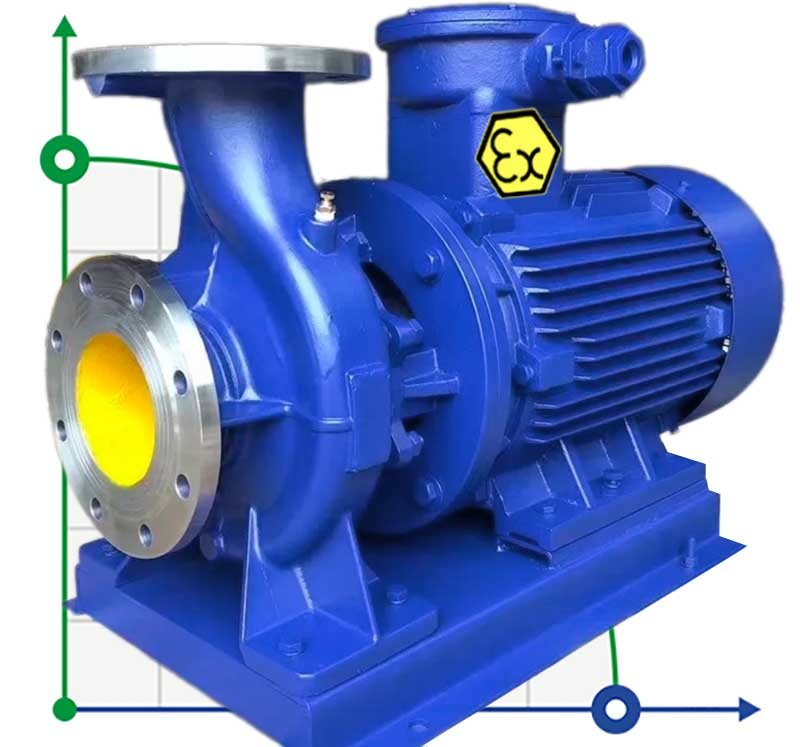

TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump
Click image for a larger view
TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump
TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump
TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump
TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump
TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump

TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump

Code: 1049354
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter150
Input pipe diameter150
Material of flow channelAISI 304 stainless steel
Weight, kg455
Explosion protectionYes
Suction capacity (NPSH), m4,5
Pump capacity, cu.m/hour187
Serial number of the pumpTKHWB
Drive Typeelectric
Feed height, m44
Country of OriginChina
Warranty, months12
Power capacity, kW37
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h187
Nom.head, m44
Impeller diameter, mm185
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial horizontal centrifugal pumps of the TKHWB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, seawater, alkalis, acid solutions, mineral fertilisers UAN, caustic solutions for SIP equipment washing. For distilleries and breweries - for pumping batch, wort, used as a GDFO pump, mash and bards. It is also ideal for pumping fusel oils and alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration plants, permeate and filtrate supply.
Category: Monobloc Stainless Console Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter150
Input pipe diameter150
Material of flow channelAISI 304 stainless steel
Weight, kg455
Explosion protectionYes
Suction capacity (NPSH), m4,5
Pump capacity, cu.m/hour187
Serial number of the pumpTKHWB
Drive Typeelectric
Feed height, m44
Country of OriginChina
Warranty, months12
Power capacity, kW37
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h187
Nom.head, m44
Impeller diameter, mm185
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Download instructions, catalog for TKHWB 150/185-37/2 (187/44), 37 kW, AISI 304, 2900, Ex horizontal stainless steel pump
