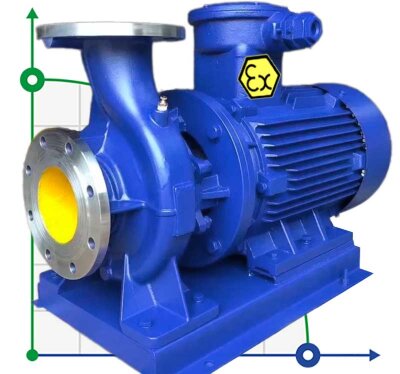

TKHWB 40/100-0.55/2 (6,3/12,5), 0,55 kW, AISI 304, 2900, Ex horizontal stainless steel pump

Click image for a larger view

Code: 1049120

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	40
Input pipe diameter	40
Material of flow channel	AISI 304 stainless steel
Weight, kg	32
Explosion protection	Yes
Suction capacity (NPSH), m	2,3
Pump capacity, cu.m/hour	6.3
Serial number of the pump	TKHWB
Drive Type	electric
Feed height, m	12.5
Country of Origin	China
Warranty, months	12
Power capacity, kW	0,55
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	6.3
Nom.head, m	12.5
Impeller diameter, mm	100
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Show all features (24)

Documentation

Description TKHWB 40/100-0.55/2 (6,3/12,5), 0,55 kW, AISI 304, 2900, Ex horizontal stainless steel pump

Industrial horizontal centrifugal pumps of the TKHWB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, seawater, alkalis, acid solutions, mineral fertilisers UAN, caustic solutions for SIP equipment washing. For distilleries and breweries - for pumping batch, wort, used as a GDFO pump, mash and bards. It is also ideal for pumping fusel oils and alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration plants, permeate and filtrate supply.

Category: Monobloc Stainless Console Pumps

Features TKHWB 40/100-0.55/2 (6,3/12,5), 0,55 kW, AISI 304, 2900, Ex horizontal stainless steel pump

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	40
Input pipe diameter	40
Material of flow channel	AISI 304 stainless steel
Weight, kg	32
Explosion protection	Yes
Suction capacity (NPSH), m	2,3
Pump capacity, cu.m/hour	6.3
Serial number of the pump	TKHWB
Drive Type	electric
Feed height, m	12.5
Country of Origin	China
Warranty, months	12
Power capacity, kW	0,55
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	6.3
Nom.head, m	12.5
Impeller diameter, mm	100
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
