| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| Max. head, m | 10.5 |
| PumpType | console |
| Output pipe diameter | G1 1/2 |
| Input pipe diameter | G1 1/2 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 80 |
| Weight, kg | 10,2 |
| Max.flow rate, m3/h | 24 |
| Explosion protection | No |
| Pump capacity, cu.m/hour | 24 |
| Serial number of the pump | BB |
| Drive Type | electric |
| Feed height, m | 10.5 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 0,55 |
| Dimensions, mm | 360x170x226 |
| Power supply | 1х220 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Seal | Mechanical Seal, CAR/SIC/VITON |
| Installation Type | horizontal |
| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| Max. head, m | 10.5 |
| PumpType | console |
| Output pipe diameter | G1 1/2 |
| Input pipe diameter | G1 1/2 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 80 |
| Weight, kg | 10,2 |
| Max.flow rate, m3/h | 24 |
| Explosion protection | No |
| Pump capacity, cu.m/hour | 24 |
| Serial number of the pump | BB |
| Drive Type | electric |
| Feed height, m | 10.5 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 0,55 |
| Dimensions, mm | 360x170x226 |
| Power supply | 1х220 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Seal | Mechanical Seal, CAR/SIC/VITON |
| Installation Type | horizontal |

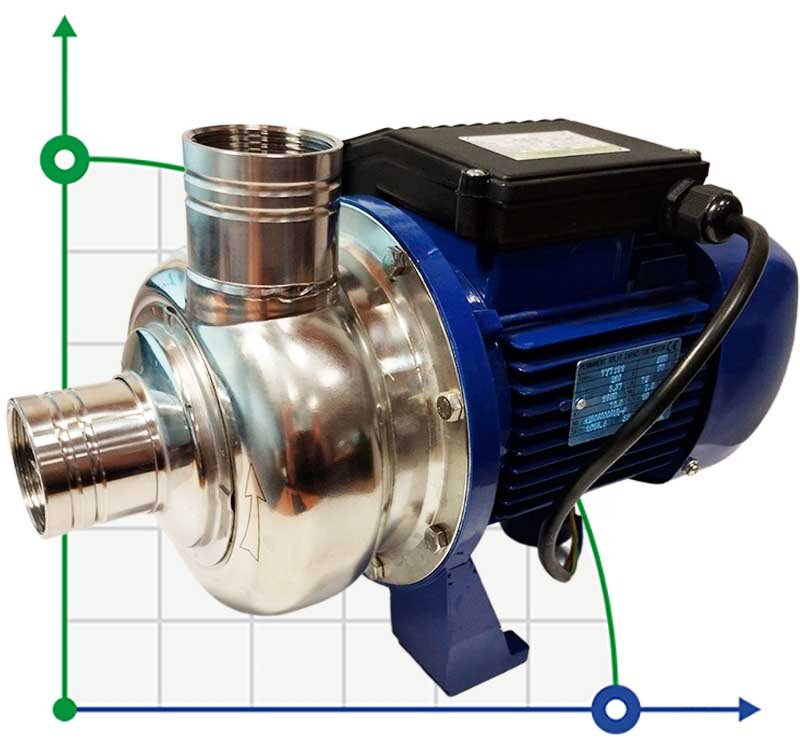

Download instructions, catalog for Centrifugal pump for water BB250/055D, AISI304, 220V/50Hz, 2900
