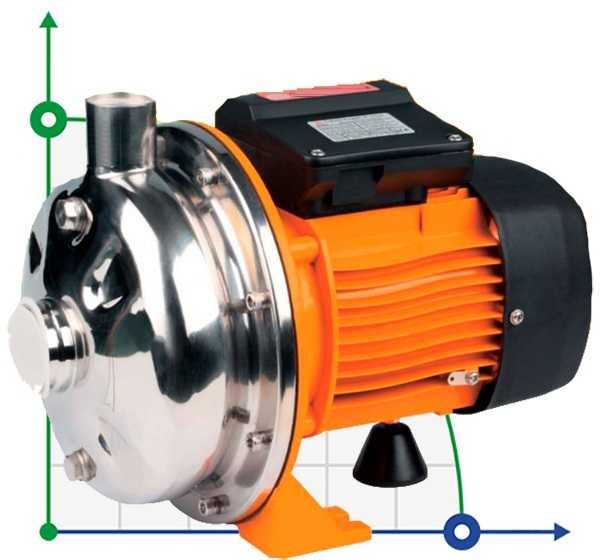

GTP 1100 Centrifugal pump

Product list

Home
Pumps
Console Pumps
GTP 1100 Centrifugal pump

Click image for a larger view

Code: 1010941

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	33
PumpType	console
Output pipe diameter	G 1"
Input pipe diameter	G 1 1/4"
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	90
Max.flow rate, m3/h	7.2
Explosion protection	No
Pump capacity, m3/h	7.2
Availability of spare parts	Yes
Serial number of the pump	GTP
Drive Type	electric
Feed height, m	33
Model	GTP-1100
Country of Origin	China
Warranty, months	12
Power capacity, kW	1,1
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Nom.pressure, Mpa	0,8
Installation Type	horizontal

Show all features (23)

Description GTP 1100 Centrifugal pump

GTP Series centrifugal pumps are made of stainless steel. GTP Series is developed using advanced technologies and feature light, compact equipment. Construction materials the pump is made of, provide high efficiency and are quiet in operation. . Centrifugal booster pumps are applied for clean water pumping intended for irrigation of gardens and backyards, as well as filling up the swimming pools. Feature the ability to pump liquids with high salt concentration and liquids, chemically-resistant to stainless steel.

Category: Console Pumps

Features GTP 1100 Centrifugal pump

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	33
PumpType	console
Output pipe diameter	G 1"
Input pipe diameter	G 1 1/4"
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	90
Max.flow rate, m3/h	7.2
Explosion protection	No
Pump capacity, m3/h	7.2
Availability of spare parts	Yes
Serial number of the pump	GTP
Drive Type	electric
Feed height, m	33
Model	GTP-1100
Country of Origin	China
Warranty, months	12
Power capacity, kW	1,1
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Nom.pressure, Mpa	0,8
Installation Type	horizontal
