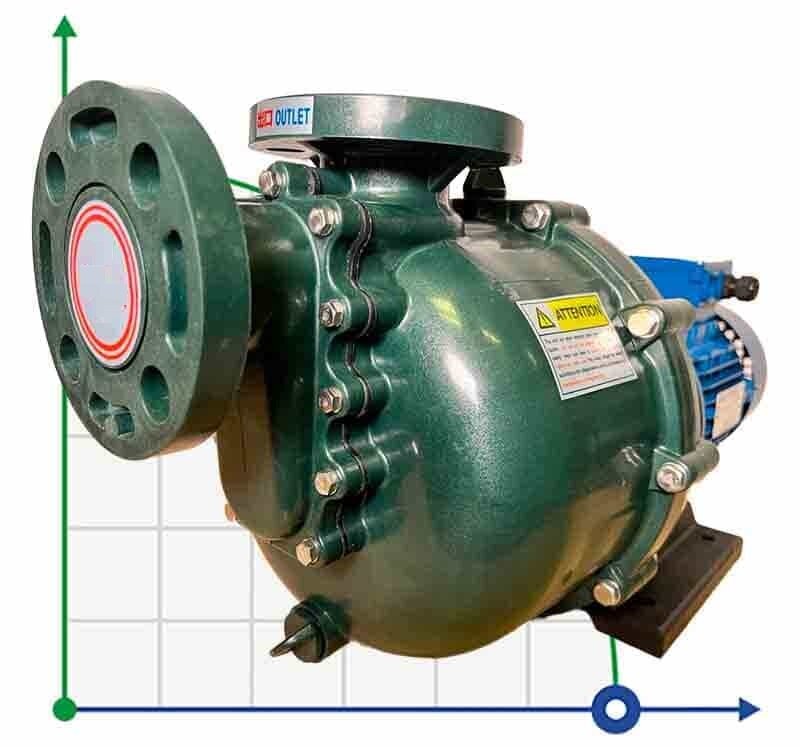

Chemical pump for ferric chloride solution QHB-G-40022EAL-SSH5V38AGABS GFRPP, 312L/min, 16.5m, 380V, centrifugal self-priming

Code: 1050856
(0 review)
ProducerQeehua
MaterialGFRPP
Max. head, m16.5
PumpTypeconsole
Output pipe diameter40
Input pipe diameter40
Max.temperature, C70
Max.flow rate, m3/h18.72
Pump capacity, m3/h18.72
Serial number of the pumpQHB
Drive Typeelectric
Feed height, m16.5
Country of OriginChina
Power capacity, kW1,5
Power supply3х380 V, 50 Hz
Type of configurationwith engine
Installation Typehorizontal
Show all features (17)
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$939 (netto)
Добавить в сравнение
We deliver anywhere in the world
QHB series chemical centrifugal self-priming pumps are made of materials (GFRPP or PVDF) that can withstand most acid and alkali solutions. QHB is a centrifugal pump with mechanical seal, direct drive by electric motor and self-priming function. (Self-priming height 5 m.) The pump has strong self-priming force and is equipped with a dry-running protection device. The liquid temperature that the pump can pump is up to 80°C for GFRPP, up to 100°C for PVDF material. The inlet flange and self-priming chamber are die-cast as a single unit, without any welding points and joints. The discharge flange and housing are also die-cast as a single unit without any welding seams, which increases the durability of the product and prevents leakage. The pump can pump liquids containing suspended particles. The electric motor is equipped with a microelectronic device for protection against idling, overload, and phase loss.
ProducerQeehua
MaterialGFRPP
Max. head, m16.5
PumpTypeconsole
Output pipe diameter40
Input pipe diameter40
Max.temperature, C70
Max.flow rate, m3/h18.72
Pump capacity, m3/h18.72
Serial number of the pumpQHB
Drive Typeelectric
Feed height, m16.5
Country of OriginChina
Power capacity, kW1,5
Power supply3х380 V, 50 Hz
Type of configurationwith engine
Installation Typehorizontal

Download instructions, catalog for Chemical pump for ferric chloride solution QHB-G-40022EAL-SSH5V38AGABS GFRPP, 312L/min, 16.5m, 380V, centrifugal self-priming
