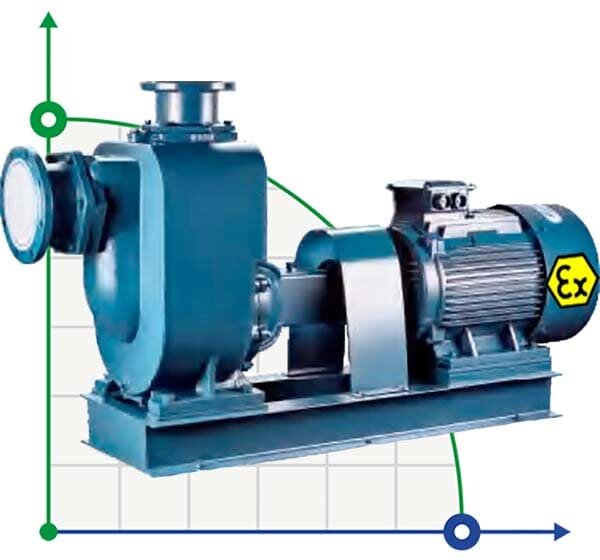

Self-priming gasoline pump BZWB 200-280-20 / 4, 37kW, 1450, Ex, imp: AISI 304

Code: 1038438
(0 review)
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter200
Input pipe diameter200
Max.temperature, C80
Explosion protectionYes
Pump capacity, cu.m/hour280
Serial number of the pumpBZWB
Drive Typeelectric
Feed height, m20
Country of OriginChina
Warranty, months12
Power capacity, kW37
Dimensions, mm1040х560х1020
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h280
Nom.head, m20
Impeller materialAISI 304 stainless steel
Applicationсолярки, перекачки бензина, перекачки дизельного топлива, petroleum products
Show all features (25)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$9,597.61 (netto)
Добавить в сравнение
We deliver anywhere in the world
Self-priming explosion-proof pump BZWB. Impeller with two blades, closed type, with wide channels for clean and dirty liquids with the presence of impurities. The pump part is connected to the motor through a coupling, which guarantees rapid restoration of the pump's operability in case of electric emergencies. AISI304 stainless steel pump part versions, available for all models. High electrical and hydraulic efficiency. High self - priming rate without the use of a check valve (4.5-6.0 m of water).St). The possibility of self-sealing is realized due to the presence of a pre-fill chamber in the pump housing. The pumps of this model are suitable for chemical, petroleum, pharmaceutical, mining, paper, fiber, cellulose, textile, food, power plants and urban sewage structures, sewage systems of public facilities, and other industries. These pumps are particularly effective for pumping gasoline and diesel fuel, bioethanol. High productivity guarantees fast and reliable loading / unloading of railway and automobile tanks, stationary storage facilities, and tank farms.
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter200
Input pipe diameter200
Max.temperature, C80
Explosion protectionYes
Pump capacity, cu.m/hour280
Serial number of the pumpBZWB
Drive Typeelectric
Feed height, m20
Country of OriginChina
Warranty, months12
Power capacity, kW37
Dimensions, mm1040х560х1020
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h280
Nom.head, m20
Impeller materialAISI 304 stainless steel
Applicationсолярки, перекачки бензина, перекачки дизельного топлива, petroleum products
