| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 25 |
| PumpType | console |
| Output pipe diameter | 50 |
| Input pipe diameter | 50 |
| Max.temperature, C | 120 |
| Weight, kg | 38 |
| Max.flow rate, m3/h | 15 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 8 |
| Pump capacity, cu.m/hour | 15 |
| Serial number of the pump | BXZ |
| Drive Type | electric |
| Feed height, m | 25 |
| Country of Origin | China |
| Power capacity, kW | 1,5 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Housing material | Сast iron |
| Seal | Mechanical Seal, SiC/Carbon/SS304 |
| Shaft material | chrome steel |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 10 |
| Nom.head, m | 18 |
| Impeller material | cast iron |
| Height of transport volume, cbm | 0,049 |
| Impeller type | open impeller |
| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 25 |
| PumpType | console |
| Output pipe diameter | 50 |
| Input pipe diameter | 50 |
| Max.temperature, C | 120 |
| Weight, kg | 38 |
| Max.flow rate, m3/h | 15 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 8 |
| Pump capacity, cu.m/hour | 15 |
| Serial number of the pump | BXZ |
| Drive Type | electric |
| Feed height, m | 25 |
| Country of Origin | China |
| Power capacity, kW | 1,5 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Housing material | Сast iron |
| Seal | Mechanical Seal, SiC/Carbon/SS304 |
| Shaft material | chrome steel |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 10 |
| Nom.head, m | 18 |
| Impeller material | cast iron |
| Height of transport volume, cbm | 0,049 |
| Impeller type | open impeller |

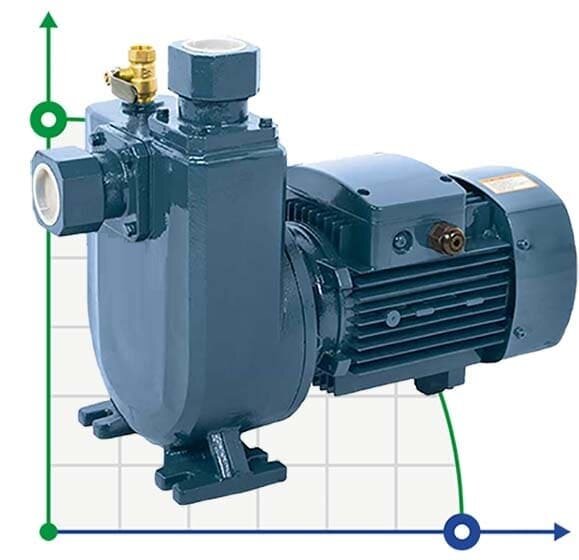

Download instructions, catalog for BXZ W15-25-1,5kW, 2900, 380V self-priming pump with open impeller
