| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 40 |
| PumpType | console |
| Output pipe diameter | 50 |
| Input pipe diameter | 50 |
| Max.temperature, C | 120 |
| Weight, kg | 50 |
| Max.flow rate, m3/h | 22 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 8 |
| Pump capacity, cu.m/hour | 22 |
| Serial number of the pump | BXZ |
| Drive Type | electric |
| Feed height, m | 40 |
| Country of Origin | China |
| Power capacity, kW | 3 |
| Power supply | 1х220 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Housing material | Сast iron |
| Seal | Mechanical Seal, SiC/Carbon/SS304 |
| Shaft material | chrome steel |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 12 |
| Nom.head, m | 28 |
| Impeller material | AISI 304 stainless steel |
| Height of transport volume, cbm | 0,077 |
| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 40 |
| PumpType | console |
| Output pipe diameter | 50 |
| Input pipe diameter | 50 |
| Max.temperature, C | 120 |
| Weight, kg | 50 |
| Max.flow rate, m3/h | 22 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 8 |
| Pump capacity, cu.m/hour | 22 |
| Serial number of the pump | BXZ |
| Drive Type | electric |
| Feed height, m | 40 |
| Country of Origin | China |
| Power capacity, kW | 3 |
| Power supply | 1х220 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Housing material | Сast iron |
| Seal | Mechanical Seal, SiC/Carbon/SS304 |
| Shaft material | chrome steel |
| Type of configuration | with engine |
| Installation Type | horizontal |
| Nom.flow rate, m3/h | 12 |
| Nom.head, m | 28 |
| Impeller material | AISI 304 stainless steel |
| Height of transport volume, cbm | 0,077 |

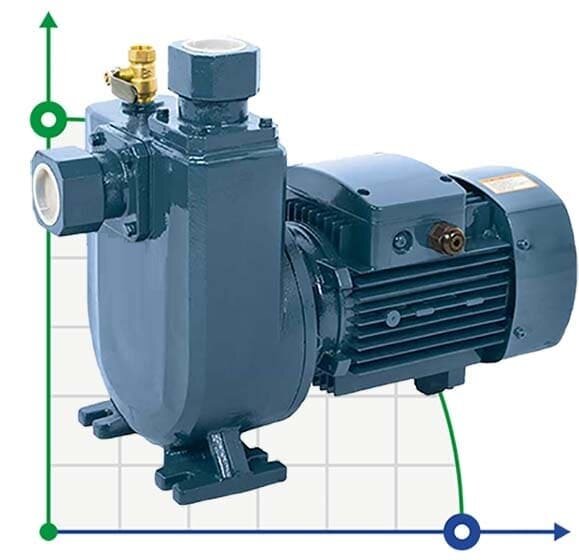

Download instructions, catalog for Faecal pump BXZm 22-40-3kW, 2900, 220V, imp:AISI 304 self-priming (like Andizhanets ANS)
