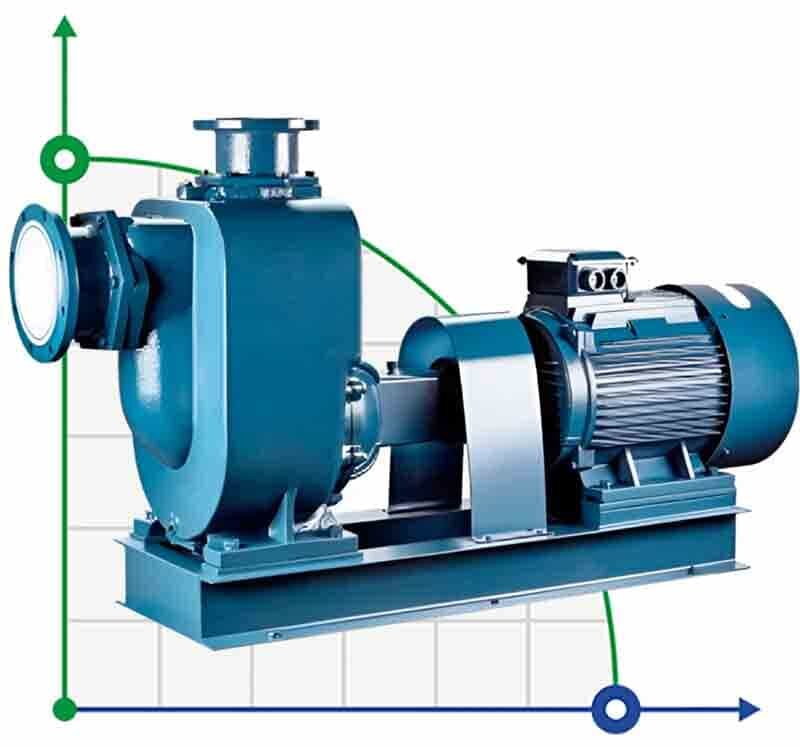

Self-priming pump for sewage BZWM100-80-60/2, 37kW, 2900

Code: 1042038
(0 review)
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter100
Input pipe diameter100
Max.temperature, C80
Explosion protectionNo
Pump capacity, cu.m/hour80
Serial number of the pumpBZWM
Drive Typeelectric
Feed height, m60
Country of OriginChina
Warranty, months12
Power capacity, kW37
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h80
Nom.head, m60
Impeller materialcast iron
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$5,651.60 (netto)
Добавить в сравнение
We deliver anywhere in the world
BZWM self-priming sewage pump. Closed type impeller with two blades, with wide channels for clean and dirty liquids with impurities. The pumping part is connected to the motor via a coupling, which guarantees quick recovery of the pump in case of electric drive failures. High electrical and hydraulic efficiency. High self-priming rate without the use of a check valve (4.5 - 6.0 m.v.s.). The self-priming capability is realised due to the presence of a pre-filling chamber in the pump casing. The pumps of this model are suitable for the chemical, oil, pharmaceutical, mining, paper, fibre, pulp, textile, food, power plants and municipal sewage facilities, public sewage, wastewater, river ponds and other industries.
ProducerBTS Engineering
Materialcast iron
PumpTypeconsole
Output pipe diameter100
Input pipe diameter100
Max.temperature, C80
Explosion protectionNo
Pump capacity, cu.m/hour80
Serial number of the pumpBZWM
Drive Typeelectric
Feed height, m60
Country of OriginChina
Warranty, months12
Power capacity, kW37
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h80
Nom.head, m60
Impeller materialcast iron

Download instructions, catalog for Self-priming pump for sewage BZWM100-80-60/2, 37kW, 2900
