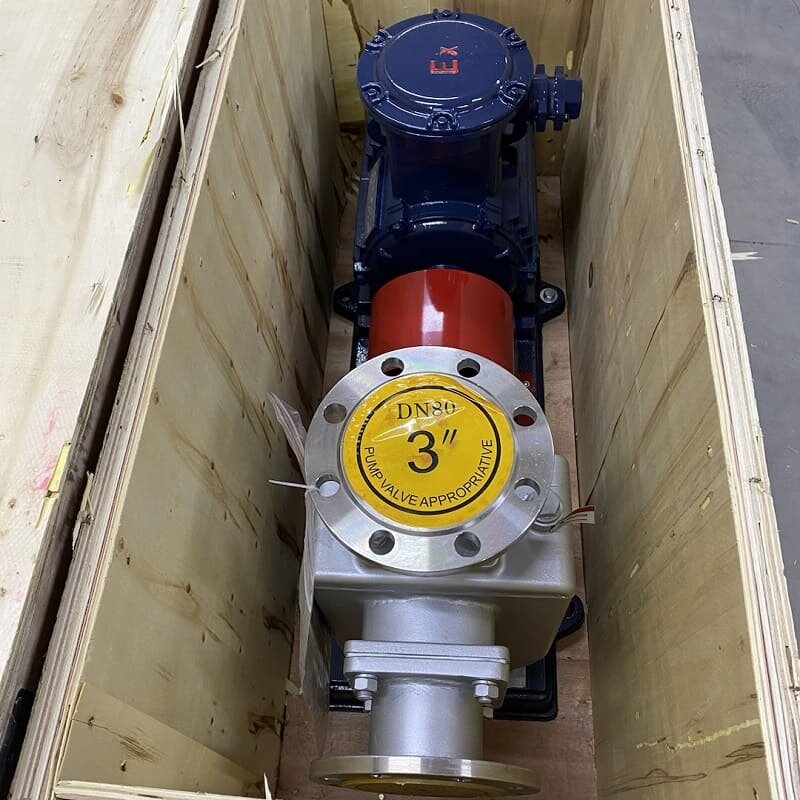

Self-priming stainless steel pump BZWH80-65-25/2, 7.5kW, 2900, all AISI 304, Ex

Code: 1049679
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter80
Input pipe diameter80
Max.temperature, C100
Explosion protectionYes
Pump capacity, cu.m/hour65
Serial number of the pumpBZWH
Drive Typeelectric
Feed height, m25
Country of OriginChina
Warranty, months12
Power capacity, kW7,5
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h65
Nom.head, m25
Impeller materialAISI 304 stainless steel
Show all features (23)
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2,404.85 (netto)
Добавить в сравнение
We deliver anywhere in the world
Self-priming stainless steel pump BZWH. Closed-loop impeller with two blades, with wide channels for clean and dirty liquids with impurities. The pumping part is connected to the motor through a coupling, which guarantees quick recovery of the pump in case of emergency situations with the electric drive. High electrical and hydraulic efficiency. High self-priming rate without the use of a check valve (4.5 - 6.0 m.v.s.). The possibility of self-priming is realized due to the presence of a pre-fill chamber in the pump casing. The pumps of this model are suitable for the chemical, oil, pharmaceutical, mining, paper, fiber, pulp, textile, food, power plants and municipal sewage facilities, public sewage, wastewater, river ponds and other industries.
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter80
Input pipe diameter80
Max.temperature, C100
Explosion protectionYes
Pump capacity, cu.m/hour65
Serial number of the pumpBZWH
Drive Typeelectric
Feed height, m25
Country of OriginChina
Warranty, months12
Power capacity, kW7,5
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h65
Nom.head, m25
Impeller materialAISI 304 stainless steel
Loading...
Products from the same category

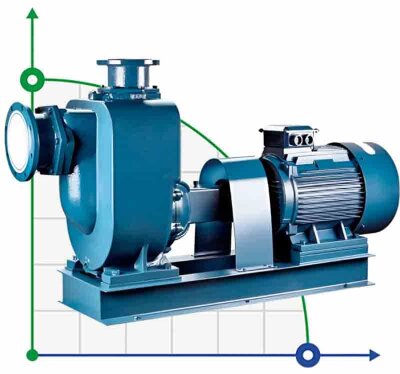

Irrigation pump BZWM25-8-15/2, 1.5kW, 2900 self-priming
