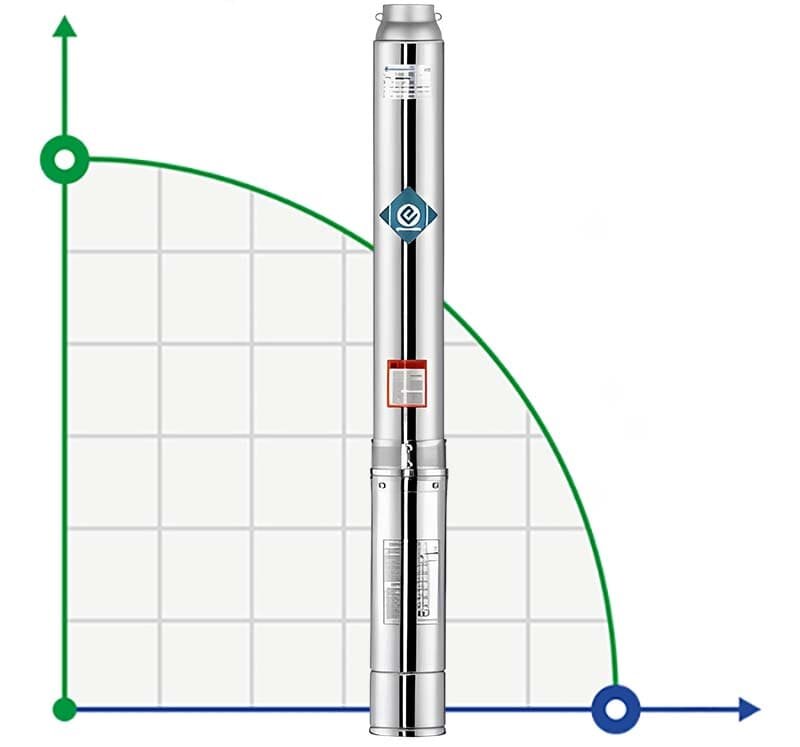

4SSM4/8 Well Pump, Outlet: 1 1/4 inch, 0.55kW, 220V

Product list

Home
Pumps
Deep Well Pumps
4SSM4/8 Well Pump, Outlet: 1 1/4 inch, 0.55kW, 220V

4SSM4/8 Well Pump, Outlet: 1 1/4 inch, 0.55kW, 220V

Click image for a larger view

Code: 1041324

(0 review)

Producer	EDWIN
Material	AISI 304 stainless steel
Max. head, m	60
PumpType	borehole
Output pipe diameter	1 1/4"
Pump capacity, cu.m/hour	4
Serial number of the pump	4SS
Drive Type	electric
Feed height, m	60
Country of Origin	China
Power capacity, kW	0,55
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 850
Housing material	AISI 304 stainless steel
Shaft material	AISI 304 stainless steel
Nom.flow rate, m3/h	4
Impeller material	POM
Max.medium temperature, Celsius degree	35
Diameter of pump	4" (100 mm)

Show all features (19)

Description 4SSM4/8 Well Pump, Outlet: 1 1/4 inch, 0.55kW, 220V

The EDWIN 4SS series pump is used for water supply from wells or reservoirs, for domestic, civil and industrial applications, for use in gardens and for irrigation. Operating conditions: maximum liquid temperature up to +35°C, maximum sand content: 0.25%, minimum well diameter: 4".

Category: Deep Well Pumps

Features 4SSM4/8 Well Pump, Outlet: 1 1/4 inch, 0.55kW, 220V

Producer	EDWIN
Material	AISI 304 stainless steel
Max. head, m	60
PumpType	borehole
Output pipe diameter	1 1/4"
Pump capacity, cu.m/hour	4
Serial number of the pump	4SS
Drive Type	electric
Feed height, m	60
Country of Origin	China
Power capacity, kW	0,55
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 850
Housing material	AISI 304 stainless steel
Shaft material	AISI 304 stainless steel
Nom.flow rate, m3/h	4
Impeller material	POM
Max.medium temperature, Celsius degree	35
Diameter of pump	4" (100 mm)
