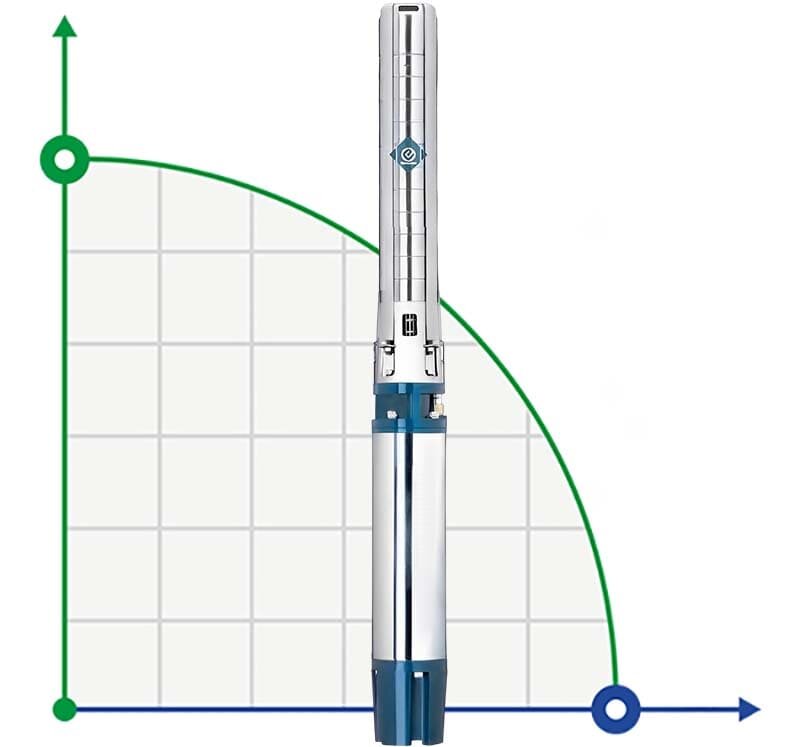

Well pump ECV 6 6SP17/18, Outlet: 3 inches, 11kW, 380V (ECV 6-16-140)

Well pump ECV 6 6SP17/18, Outlet: 3 inches, 11kW, 380V (ECV 6-16-140)

Click image for a larger view

More +1

Code: 1041501

(0 review)

Producer	EDWIN
Material	AISI 304 stainless steel
Max. head, m	198
PumpType	borehole
Output pipe diameter	3"
Weight, kg	78
Max.flow rate, m3/h	24
Pump capacity, cu.m/hour	24
Serial number of the pump	6SP
Drive Type	electric
Feed height, m	198
Country of Origin	China
Power capacity, kW	11
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 850
Housing material	AISI 304 stainless steel
Gross weight, kg	81
Shaft material	AISI 431
Nom.flow rate, m3/h	17
Impeller material	AISI 304 stainless steel
Max.medium temperature, Celsius degree	50
Diameter of pump	6" (150 mm)

Show all features (22)

Description Well pump ECV 6 6SP17/18, Outlet: 3 inches, 11kW, 380V (ECV 6-16-140)

The EDWIN 6SP series pump is used for water supply from wells or reservoirs, for domestic, civil and industrial applications, for use in gardens and for irrigation. Operating conditions: maximum fluid temperature up to +50°C, maximum sand content: 0.25%, minimum well diameter: 6".

Category: Deep Well Pumps

Features Well pump ECV 6 6SP17/18, Outlet: 3 inches, 11kW, 380V (ECV 6-16-140)

Producer	EDWIN
Material	AISI 304 stainless steel
Max. head, m	198
PumpType	borehole
Output pipe diameter	3"
Weight, kg	78
Max.flow rate, m3/h	24
Pump capacity, cu.m/hour	24
Serial number of the pump	6SP
Drive Type	electric
Feed height, m	198
Country of Origin	China
Power capacity, kW	11
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 850
Housing material	AISI 304 stainless steel
Gross weight, kg	81
Shaft material	AISI 431
Nom.flow rate, m3/h	17
Impeller material	AISI 304 stainless steel
Max.medium temperature, Celsius degree	50
Diameter of pump	6" (150 mm)
