| Producer | Deep Well Pump |
| Material | AISI 304 stainless steel |
| Max. head, m | 241 |
| PumpType | borehole |
| Output pipe diameter | 2 1/2" |
| Flow rate, l/min | 400 |
| Max.flow rate, m3/h | 24 |
| Pump capacity, m3/h | 24 |
| Serial number of the pump | 6SP |
| Drive Type | electric |
| Feed height, m | 241 |
| Country of Origin | China |
| Power capacity, kW | 22 |
| Length of transport packing, cm | 290 |
| Width of transport packing, cm | 33 |
| Height of transport packing, cm | 17 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 850 |
| Housing material | AISI 304 stainless steel |
| Gross weight, kg | 152 |

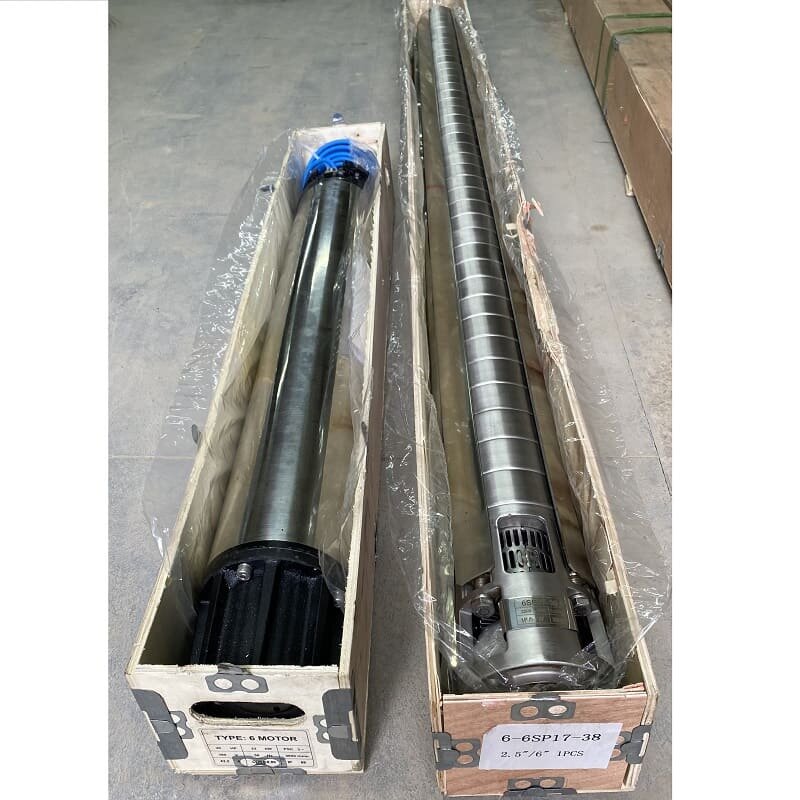

| Packaging | delivered by two parts, packaging of the pump part: 290x16x16 cm, 70 kg; engine: 111x17x17cm, 82 kg |
| Cabel length,m | 2 |
| Diameter of pump | 6" (150 mm) |
| Producer | Deep Well Pump |
| Material | AISI 304 stainless steel |
| Max. head, m | 241 |
| PumpType | borehole |
| Output pipe diameter | 2 1/2" |
| Flow rate, l/min | 400 |
| Max.flow rate, m3/h | 24 |
| Pump capacity, m3/h | 24 |
| Serial number of the pump | 6SP |
| Drive Type | electric |
| Feed height, m | 241 |
| Country of Origin | China |
| Power capacity, kW | 22 |
| Length of transport packing, cm | 290 |
| Width of transport packing, cm | 33 |
| Height of transport packing, cm | 17 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 850 |
| Housing material | AISI 304 stainless steel |
| Gross weight, kg | 152 |
| Packaging | delivered by two parts, packaging of the pump part: 290x16x16 cm, 70 kg; engine: 111x17x17cm, 82 kg |
| Cabel length,m | 2 |
| Diameter of pump | 6" (150 mm) |
Download instructions, catalog for Deep Well Pump 6SP30/22, 22kW, 380V
