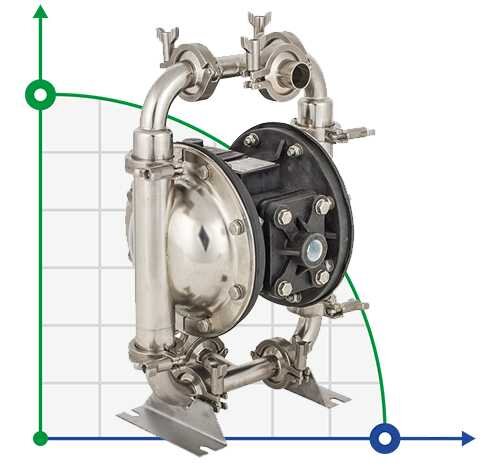

DP 10 SC/S - Pneumatic Membrane Pump

Product list

Home
Pumps
Diaphragm Pumps
DP 10 SC/S - Pneumatic Membrane Pump

Click image for a larger view

Code: 1020092

(0 review)

Producer	DiaPump
Material	AISI 316L
Max. head, m	80
PumpType	membrane pneumatic
Material of flow channel	AISI 316L
Max.temperature, C	95
Max.air pressure, bar	8,4
Weight, kg	12
Flow rate, l/min	160
Max.diameter of solid inclusions, mm	4
Max.flow rate, m3/h	9.6
Explosion protection	Yes
Diametr of the product line	1"
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	6
Suction capacity (NPSH), m	9,8
Noise level ,dB	65
Pump capacity, m3/h	9.6
Availability of spare parts	Yes
Serial number of the pump	DP
Drive Type	pneumatic
Feed height, m	80
Diaphragm material at water side	SANTOPRENE
Max.viscosity, cPs	35 000
Model	DP 10
Country of Origin	Turkey
Warranty, months	12
ATEX standard	Ex II 2 G c Tx; Ex II 2 D c Tx; Ex I M2 c T (150°C)
Analogue for	AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300

Show all features (30)

Documentation

Description DP 10 SC/S - Pneumatic Membrane Pump

Membrane pumps DP with innovative air separation system, geometry of pump chambers and valve system, allows to pump over a wide range of aggressive products (concentrated acids, alkalis, solvents, laquers, glues, liquids with suspended particles to 10 mm, abrasive products, etc.) with viscosity from 6000 to 55000 cPs. Wet part of membrane pumps DP is made of such material as: - РР: POLYPROPLENE ; - PB: FIBER POLYPROPLENE; - PVDF: KYNAR; - AL: ALUMINUM; - DD: CAST IRON; - SC: АІSI 316L; - SS: АІSI 316. The main working bodies (membranes, ball valves, ball seats) are made of: - S: SANTOPRENE; - N: NEOPRENE; - B: BUNA-N (NBR); - E: EPDM; - T: PTFE; - V: VITON / FKM. The advantages of pneumatic membrane pumps DP: - Dry self-suction to 6 m; - Self-suction with flooded suction to 9,8 m; - Unrestrained dry running.

Category: Diaphragm Pumps

Features DP 10 SC/S - Pneumatic Membrane Pump

Producer	DiaPump
Material	AISI 316L
Max. head, m	80
PumpType	membrane pneumatic
Material of flow channel	AISI 316L
Max.temperature, C	95
Max.air pressure, bar	8,4
Weight, kg	12
Flow rate, l/min	160
Max.diameter of solid inclusions, mm	4
Max.flow rate, m3/h	9.6
Explosion protection	Yes
Diametr of the product line	1"
Diameter of the pneumatic mainline	1/2"
Dry suction height, m	6
Suction capacity (NPSH), m	9,8
Noise level ,dB	65
Pump capacity, m3/h	9.6
Availability of spare parts	Yes
Serial number of the pump	DP
Drive Type	pneumatic
Feed height, m	80
Diaphragm material at water side	SANTOPRENE
Max.viscosity, cPs	35 000
Model	DP 10
Country of Origin	Turkey
Warranty, months	12
ATEX standard	Ex II 2 G c Tx; Ex II 2 D c Tx; Ex I M2 c T (150°C)
Analogue for	AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300
