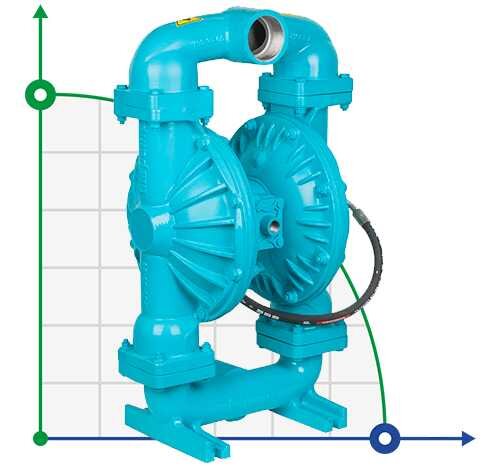

DP 300 DD/SN - DD/N - Pneumatic Membrane Pump

Code: 1020123
(0 review)
ProducerDiaPump
Materialcast iron
Max. head, m160
PumpTypemembrane pneumatic
Material of flow channelcast iron
Max.temperature, C95
Max.air pressure, bar16
Flow rate, l/min440
Max.diameter of solid inclusions, mm8
Max.flow rate, m3/h26.4
Explosion protectionYes
Diametr of the product line3"
Diameter of the pneumatic mainline3/4"
Dry suction height, m6
Suction capacity (NPSH), m9,8
Noise level ,dB65
Pump capacity, cu.m/hour26.4
Availability of spare partsyes
Serial number of the pumpDP
Drive Typepneumatic
Feed height, m160
Diaphragm material at water sideNBR / SNTPRN
Max.viscosity, cPs45 000
ModelDP 300
Country of OriginTurkey
Warranty, months12
ATEX standardEx II 2 G c Tx; Ex II 2 D c Tx; Ex I M2 c T (150°C)
Applicationethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, acetic acid, phenol, alcohol, reverse osmosis systems, urea, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid
Analogue forAGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300
Show all features (29)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$3,675.43 (netto)
Добавить в сравнение
We deliver anywhere in the world
Membrane pumps DP with innovative air separation system, geometry of pump chambers and valve system, allows to pump over a wide range of aggressive products (concentrated acids, alkalis, solvents, laquers, glues, liquids with suspended particles to 10 mm, abrasive products, etc.) with viscosity from 6000 to 55000 cPs. Wet part of membrane pumps DP is made of such material as: - РР: POLYPROPLENE ; - PB: FIBER POLYPROPLENE; - PVDF: KYNAR; - AL: ALUMINUM; - DD: CAST IRON; - SC: АІSI 316L; - SS: АІSI 316. The main working bodies (membranes, ball valves, ball seats) are made of: - S: SANTOPRENE; - N: NEOPRENE; - B: BUNA-N (NBR); - E: EPDM; - T: PTFE; - V: VITON / FKM. The advantages of pneumatic membrane pumps DP: - Dry self-suction to 6 m; - Self-suction with flooded suction to 9,8 m; - Unrestrained dry running.
Category: Diaphragm Pumps
ProducerDiaPump
Materialcast iron
Max. head, m160
PumpTypemembrane pneumatic
Material of flow channelcast iron
Max.temperature, C95
Max.air pressure, bar16
Flow rate, l/min440
Max.diameter of solid inclusions, mm8
Max.flow rate, m3/h26.4
Explosion protectionYes
Diametr of the product line3"
Diameter of the pneumatic mainline3/4"
Dry suction height, m6
Suction capacity (NPSH), m9,8
Noise level ,dB65
Pump capacity, cu.m/hour26.4
Availability of spare partsyes
Serial number of the pumpDP
Drive Typepneumatic
Feed height, m160
Diaphragm material at water sideNBR / SNTPRN
Max.viscosity, cPs45 000
ModelDP 300
Country of OriginTurkey
Warranty, months12
ATEX standardEx II 2 G c Tx; Ex II 2 D c Tx; Ex I M2 c T (150°C)
Applicationethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, acetic acid, phenol, alcohol, reverse osmosis systems, urea, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid
Analogue forAGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300
