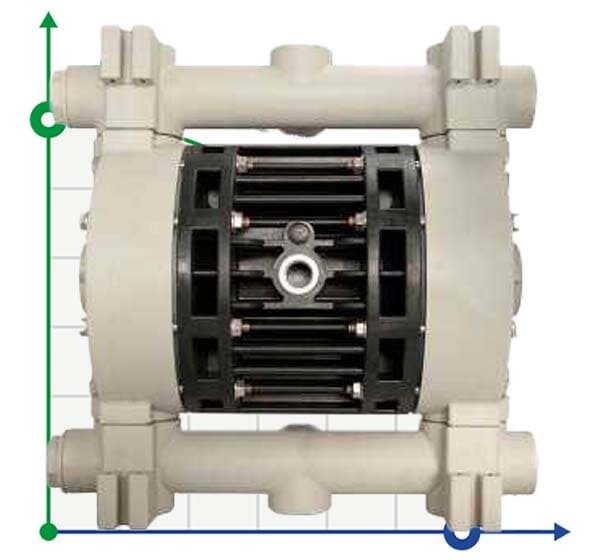

The pneumatic diaphragm pumps BOXER 150 PP IB150P-D-DPD--.

Click image for a larger view

Code: IB150P-D-DPD--.

Producer	DEBEM
Material	PP
Max. head, m	70
PumpType	membrane pneumatic
Output pipe diameter	1" 1/4
Diaphragm material at air side	EPDM
Input pipe diameter	1" 1/4
Material of flow channel	PP
Material of valve seat	PP
Max.temperature, C	95
Max.air pressure, bar	7
Weight, kg	12
Flow rate, l/min	220
Max.diameter of solid inclusions, mm	5
Max.flow rate, m3/h	13.2
Pump capacity, m3/h	13.2
Availability of spare parts	Yes
Serial number of the pump	BOXER
Drive Type	pneumatic
Feed height, m	70
Material of ball valves	EPDM
Max.viscosity, cPs	40 000
Model	BOXER 150
Country of Origin	Italy
Material of O-ring	EPDM
Max.dry suction head, m	6
Pneumatic circuit connection, inch, f	1/2"
Analogue for	AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300

Show all features (29)

Documentation

Description The pneumatic diaphragm pumps BOXER 150 PP IB150P-D-DPD--.

Diaphragm pump diaphragm 150 BOXER Features of the diaphragm pump 150 BOXER - pump capacity up to 220 l / min; - Samozakachivanie liquid to 5 m; - Work in unconfined mode; - Supply air without lubrication; - Rapid regulation while maintaining a high pressure; - The possibility of establishing a suspension; - Adjustable blowing and head; - Mnogopatrubnye tube bends; - Can run dry without any problems; - No electrical connections; - Easily replaceable parts; - Easy maintenance; - Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.
